Longhorn Pendulum

Shearing Equipment |  Spares | Longhorn Pendulum

Longhorn Pendulum

Shearing Equipment |  Spares | Longhorn Pendulum


Longhorn Pendulum


Made from stainless steel and aluminium components,

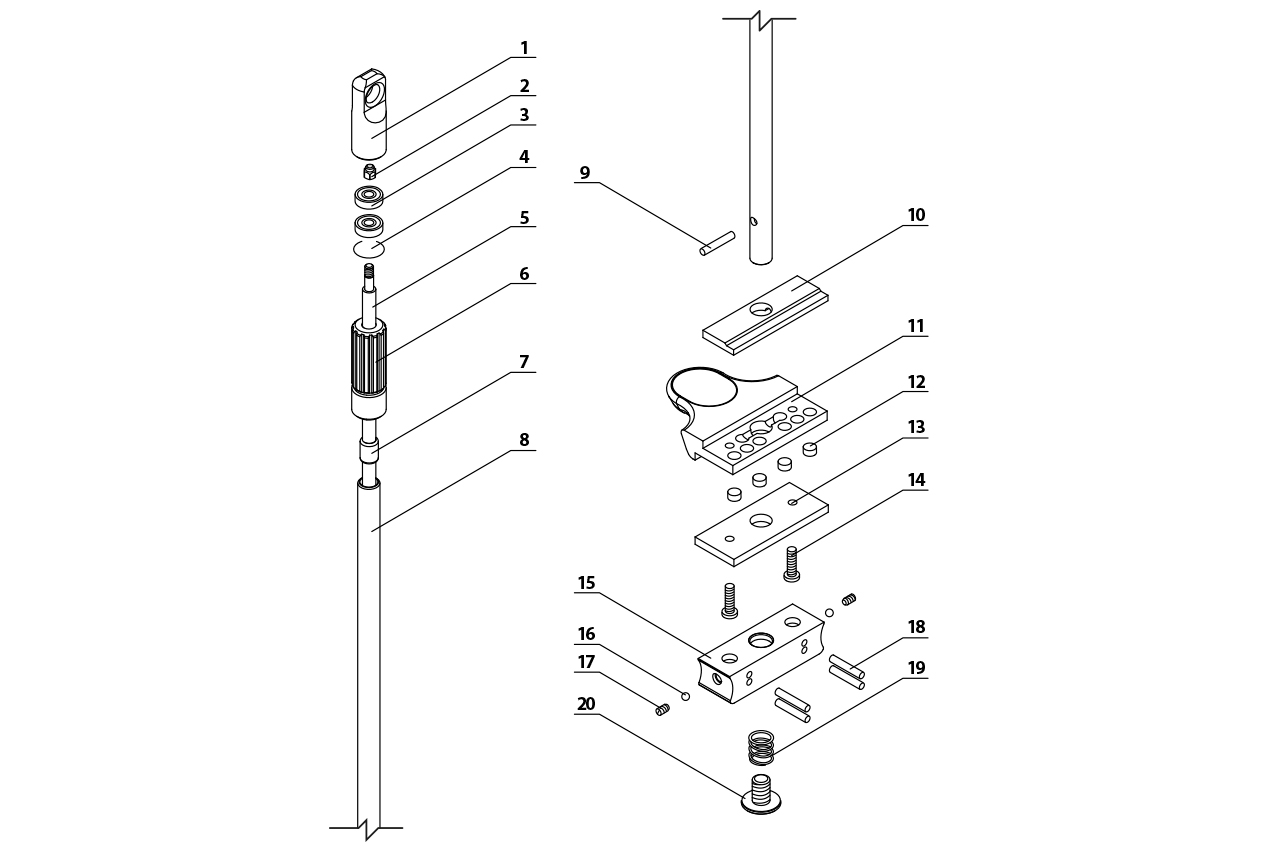

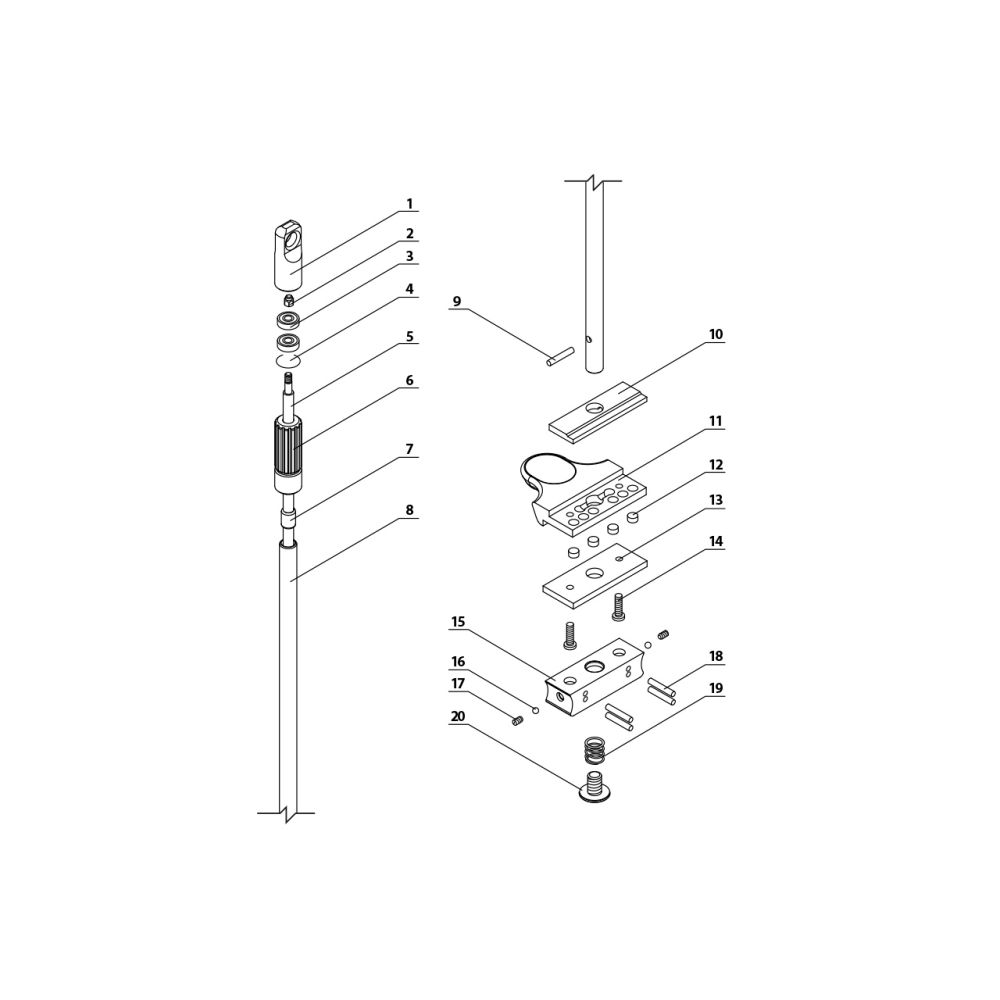

1 - Longhorn Pendulum Hanging Swivel - H70-9811 - Longhorn Pendulum Hanging Swivel - H70-981



1 - Longhorn Pendulum Hanging Swivel - H70-981

1 - Longhorn Pendulum Hanging Swivel - H70-981



Quantity:

2 - Longhorn Pendulum Bearing Retaining Nut - H70-9932 - Longhorn Pendulum Bearing Retaining Nut - H70-993



2 - Longhorn Pendulum Bearing Retaining Nut - H70-993

2 - Longhorn Pendulum Bearing Retaining Nut - H70-993



Quantity:

3 - Longhorn Pendulum Bearing - H70-9943 - Longhorn Pendulum Bearing - H70-994



3 - Longhorn Pendulum Bearing - H70-994

3 - Longhorn Pendulum Bearing - H70-994



Quantity:

4 - Longhorn Pendulum Circlip - H70-9954 - Longhorn Pendulum Circlip - H70-995



4 - Longhorn Pendulum Circlip - H70-995

4 - Longhorn Pendulum Circlip - H70-995



Quantity:

5 - Longhorn Pendulum Inner Shaft - H70-9875 - Longhorn Pendulum Inner Shaft - H70-987



5 - Longhorn Pendulum Inner Shaft - H70-987

5 - Longhorn Pendulum Inner Shaft - H70-987



Quantity:

6 - Longhorn Pendulum Thumb Screw - H70-9826 - Longhorn Pendulum Thumb Screw - H70-982



6 - Longhorn Pendulum Thumb Screw - H70-982

6 - Longhorn Pendulum Thumb Screw - H70-982



Quantity:

7 - Longhorn Pendulum Compression Bush - H70-9837 - Longhorn Pendulum Compression Bush - H70-983



7 - Longhorn Pendulum Compression Bush - H70-983

7 - Longhorn Pendulum Compression Bush - H70-983



Quantity:

8 - Longhorn Pendulum Outer Shaft - H70-9868 - Longhorn Pendulum Outer Shaft - H70-986



8 - Longhorn Pendulum Outer Shaft - H70-986

8 - Longhorn Pendulum Outer Shaft - H70-986



Quantity:

9 - Longhorn Pendulum Shaft Pin - H70-9969 - Longhorn Pendulum Shaft Pin - H70-996



9 - Longhorn Pendulum Shaft Pin - H70-996

9 - Longhorn Pendulum Shaft Pin - H70-996



Quantity:

10 - Longhorn Pendulum Upper Plate- H70-98410 - Longhorn Pendulum Upper Plate- H70-984



10 - Longhorn Pendulum Upper Plate- H70-984

10 - Longhorn Pendulum Upper Plate- H70-984



Quantity:

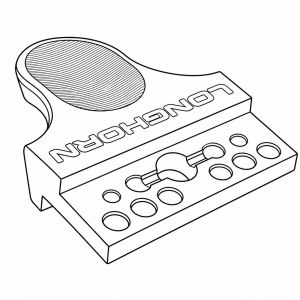

11 - Longhorn Pendulum Handle - H70-99011 - Longhorn Pendulum Handle - H70-990



11 - Longhorn Pendulum Handle - H70-990

11 - Longhorn Pendulum Handle - H70-990



Quantity:

12 - Longhorn Pendulum Magnet - H70-99212 - Longhorn Pendulum Magnet - H70-992



12 - Longhorn Pendulum Magnet - H70-992

12 - Longhorn Pendulum Magnet - H70-992



Quantity:

13 - Longhorn Pendulum Lower Plate - H70-98513 - Longhorn Pendulum Lower Plate - H70-985



13 - Longhorn Pendulum Lower Plate - H70-985

13 - Longhorn Pendulum Lower Plate - H70-985



Quantity:

14 - Longhorn Pendulum Plate Retaining Screw - H70-99714 - Longhorn Pendulum Plate Retaining Screw - H70-997



14 - Longhorn Pendulum Plate Retaining Screw - H70-997

14 - Longhorn Pendulum Plate Retaining Screw - H70-997



Quantity:

15 - Longhorn Pendulum Swivel Block - H70-98815 - Longhorn Pendulum Swivel Block - H70-988



15 - Longhorn Pendulum Swivel Block - H70-988

15 - Longhorn Pendulum Swivel Block - H70-988



Quantity:

16 - Longhorn Pendulum Pressure Ball - H70-99816 - Longhorn Pendulum Pressure Ball - H70-998



16 - Longhorn Pendulum Pressure Ball - H70-998

16 - Longhorn Pendulum Pressure Ball - H70-998



Quantity:

17 - Longhorn Pendulum Set Screw - H70-99917 - Longhorn Pendulum Set Screw - H70-999



17 - Longhorn Pendulum Set Screw - H70-999

17 - Longhorn Pendulum Set Screw - H70-999



Quantity:

18 - Longhorn Pendulum Pin - H70-98018 - Longhorn Pendulum Pin - H70-980



18 - Longhorn Pendulum Pin - H70-980

18 - Longhorn Pendulum Pin - H70-980



Quantity:

19 - Longhorn Pendulum Swivel Block Spring - H70-99119 - Longhorn Pendulum Swivel Block Spring - H70-991



19 - Longhorn Pendulum Swivel Block Spring - H70-991

19 - Longhorn Pendulum Swivel Block Spring - H70-991



Quantity:

20 - Longhorn Pendulum Shaft End Screw - H70-98920 - Longhorn Pendulum Shaft End Screw - H70-989



20 - Longhorn Pendulum Shaft End Screw - H70-989

20 - Longhorn Pendulum Shaft End Screw - H70-989



Quantity:
