Occasionally spare parts may need to be ordered from our suppliers. We will notify you when your order is processed if any delay will be greater than 3 working days.

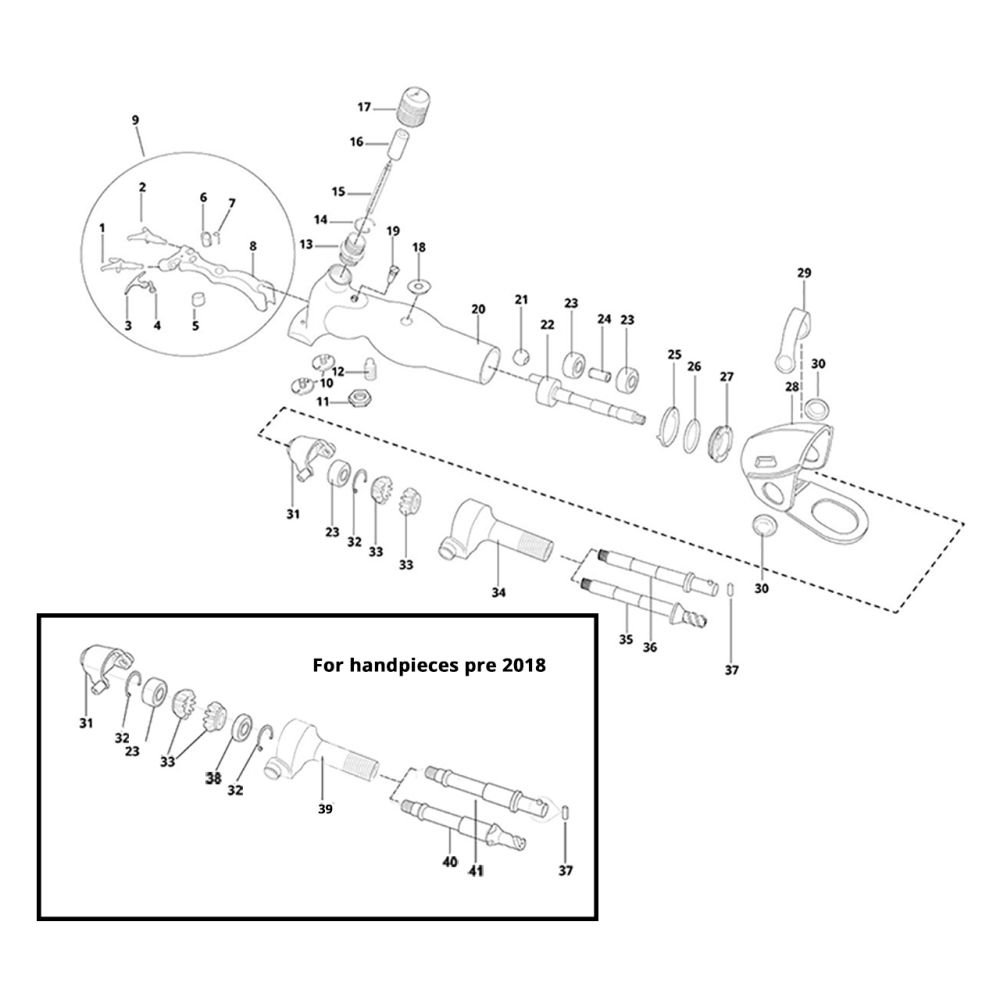

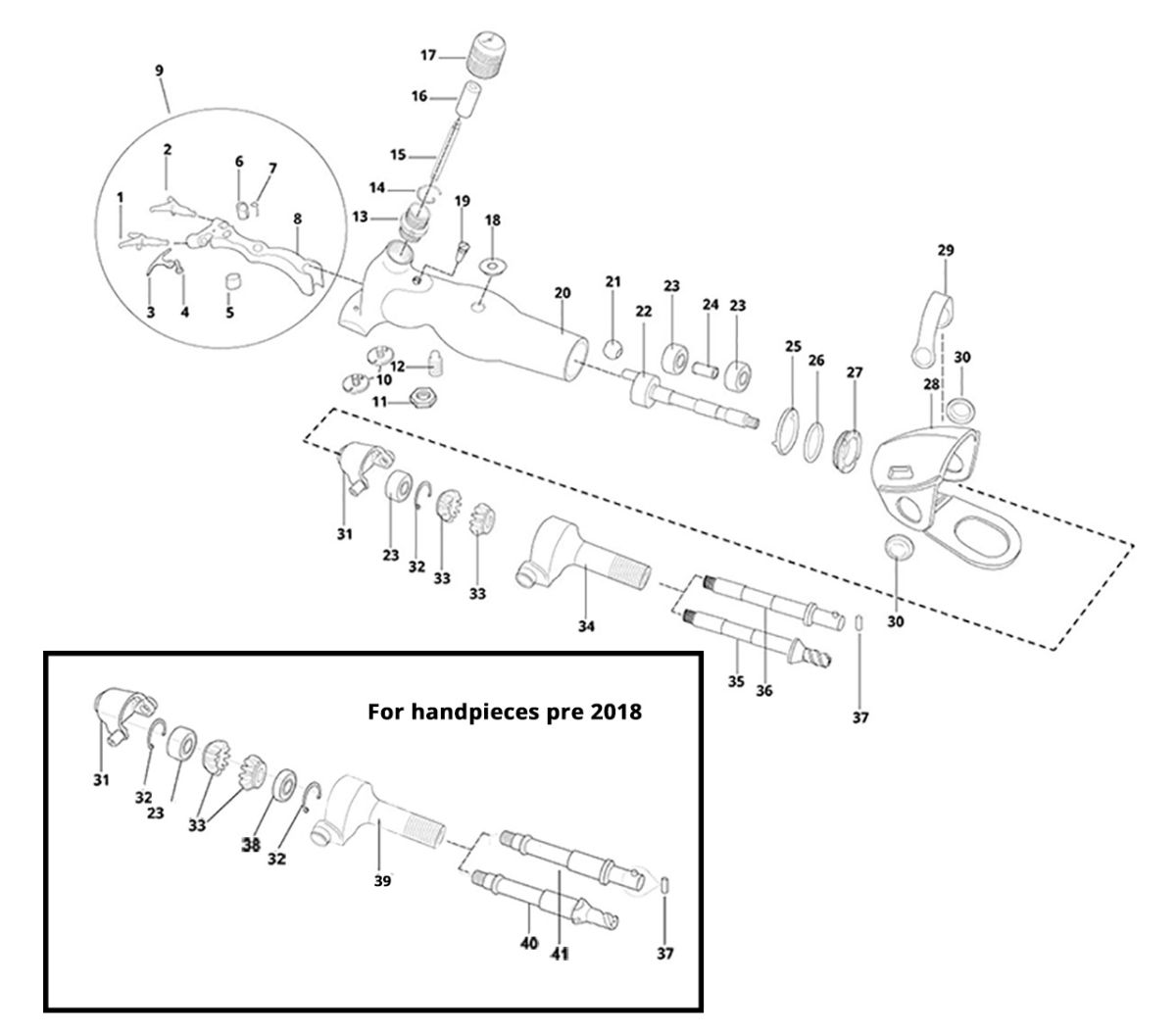

Red Arrow Breakdown



1 - Red Arrow Left Hand Fork - H19-2001 - Red Arrow Left Hand Fork - H19-200



1 - Red Arrow Left Hand Fork - H19-200

1 - Red Arrow Left Hand Fork - H19-200



Quantity:

2 - Red Arrow Right Hand Fork - H19-2012 - Red Arrow Right Hand Fork - H19-201



2 - Red Arrow Right Hand Fork - H19-201

2 - Red Arrow Right Hand Fork - H19-201



Quantity:

3 - Red Arrow Fork Retaining Spring - H19-2023 - Red Arrow Fork Retaining Spring - H19-202



3 - Red Arrow Fork Retaining Spring - H19-202

3 - Red Arrow Fork Retaining Spring - H19-202



Quantity:

4 - Red Arrow Fork Retainer Screw - H19-2034 - Red Arrow Fork Retainer Screw - H19-203



4 - Red Arrow Fork Retainer Screw - H19-203

4 - Red Arrow Fork Retainer Screw - H19-203



Quantity:

5 - Red Arrow Fulcrum Cup - H19-2045 - Red Arrow Fulcrum Cup - H19-204



5 - Red Arrow Fulcrum Cup - H19-204

5 - Red Arrow Fulcrum Cup - H19-204



Quantity:

6 - Red Arrow Tension Pin Cup - H19-2056 - Red Arrow Tension Pin Cup - H19-205



6 - Red Arrow Tension Pin Cup - H19-205

6 - Red Arrow Tension Pin Cup - H19-205



Quantity:

7 - Red Arrow Tension Pin Retaining Spring - H19-2067 - Red Arrow Tension Pin Retaining Spring - H19-206



7 - Red Arrow Tension Pin Retaining Spring - H19-206

7 - Red Arrow Tension Pin Retaining Spring - H19-206



Quantity:

8 - Red Arrow Bare Fork Body - H19-2078 - Red Arrow Bare Fork Body - H19-207



8 - Red Arrow Bare Fork Body - H19-207

8 - Red Arrow Bare Fork Body - H19-207



Quantity:

9 - Red Arrow Complete Fork Body - H19-208 9 - Red Arrow Complete Fork Body - H19-208



9 - Red Arrow Complete Fork Body - H19-208

9 - Red Arrow Complete Fork Body - H19-208



Quantity:

10 - Red Arrow Comb Screw (Knucklesaver) - H19-20910 - Red Arrow Comb Screw (Knucklesaver) - H19-209

Price is for a single screw


10 - Red Arrow Comb Screw (Knucklesaver) - H19-209

10 - Red Arrow Comb Screw (Knucklesaver) - H19-209

Price is for a single screw


Quantity:

11 - Red Arrow Fulcrum Post Nut - H19-115 11 - Red Arrow Fulcrum Post Nut - H19-115



11 - Red Arrow Fulcrum Post Nut - H19-115

11 - Red Arrow Fulcrum Post Nut - H19-115



Quantity:

12 - Red Arrow Fulcrum Post - H19-116 12 - Red Arrow Fulcrum Post - H19-116



12 - Red Arrow Fulcrum Post - H19-116

12 - Red Arrow Fulcrum Post - H19-116



Quantity:

13 - Red Arrow Threaded Bush - H19-117 13 - Red Arrow Threaded Bush - H19-117



13 - Red Arrow Threaded Bush - H19-117

13 - Red Arrow Threaded Bush - H19-117



Quantity:

14 - Red Arrow Tension Circlip - H19-213 14 - Red Arrow Tension Circlip - H19-213



14 - Red Arrow Tension Circlip - H19-213

14 - Red Arrow Tension Circlip - H19-213



Quantity:

15 - Red Arrow Tension Pin - H19-214 15 - Red Arrow Tension Pin - H19-214



15 - Red Arrow Tension Pin - H19-214

15 - Red Arrow Tension Pin - H19-214



Quantity:

16 - Red Arrow Sliding Sleeve - H19-215 16 - Red Arrow Sliding Sleeve - H19-215



16 - Red Arrow Sliding Sleeve - H19-215

16 - Red Arrow Sliding Sleeve - H19-215



Quantity:

17 - Red Arrow Tension Knob - H19-118 17 - Red Arrow Tension Knob - H19-118



17 - Red Arrow Tension Knob - H19-118

17 - Red Arrow Tension Knob - H19-118



Quantity:

18 - Red Arrow Rubber Bung - H19-217 18 - Red Arrow Rubber Bung - H19-217



18 - Red Arrow Rubber Bung - H19-217

18 - Red Arrow Rubber Bung - H19-217



Quantity:

19 - Red Arrow Safety Screw - H19-13219 - Red Arrow Safety Screw - H19-132



19 - Red Arrow Safety Screw - H19-132

19 - Red Arrow Safety Screw - H19-132



Quantity:

20 - Red Arrow Handle - H19-119 20 - Red Arrow Handle - H19-119



20 - Red Arrow Handle - H19-119

20 - Red Arrow Handle - H19-119



Quantity:

21 - Red Arrow Crank Roller - H19-222 21 - Red Arrow Crank Roller - H19-222



21 - Red Arrow Crank Roller - H19-222

21 - Red Arrow Crank Roller - H19-222



Quantity:

22 - Red Arrow Crank Spindle - H19-120 22 - Red Arrow Crank Spindle - H19-120



22 - Red Arrow Crank Spindle - H19-120

22 - Red Arrow Crank Spindle - H19-120



Quantity:

23 - Red Arrow 3000 2RS Bearing - H19-12123 - Red Arrow 3000 2RS Bearing - H19-121



23 - Red Arrow 3000 2RS Bearing - H19-121

23 - Red Arrow 3000 2RS Bearing - H19-121



Quantity:

24 - Red Arrow Bearing Spacer - H19-12224 - Red Arrow Bearing Spacer - H19-122



24 - Red Arrow Bearing Spacer - H19-122

24 - Red Arrow Bearing Spacer - H19-122



Quantity:

25 - Red Arrow Rear Locking Ring - H19-12325 - Red Arrow Rear Locking Ring - H19-123



25 - Red Arrow Rear Locking Ring - H19-123

25 - Red Arrow Rear Locking Ring - H19-123



Quantity:

26 - Red Arrow Wavy Washer - H19-12426 - Red Arrow Wavy Washer - H19-124



26 - Red Arrow Wavy Washer - H19-124

26 - Red Arrow Wavy Washer - H19-124



Quantity:

27 - Red Arrow Retaining Ring - H19-12527 - Red Arrow Retaining Ring - H19-125



27 - Red Arrow Retaining Ring - H19-125

27 - Red Arrow Retaining Ring - H19-125



Quantity:

28 - Red Arrow Handpiece Guard - H17-03028 - Red Arrow Handpiece Guard - H17-030



28 - Red Arrow Handpiece Guard - H17-030

28 - Red Arrow Handpiece Guard - H17-030



Quantity:

29 - Red Arrow Joint Spring - H19-228 29 - Red Arrow Joint Spring - H19-228



29 - Red Arrow Joint Spring - H19-228

29 - Red Arrow Joint Spring - H19-228



Quantity:

30 - Red Arrow Joint Cap - H19-229 30 - Red Arrow Joint Cap - H19-229

Price is for a single cap


30 - Red Arrow Joint Cap - H19-229

30 - Red Arrow Joint Cap - H19-229

Price is for a single cap


Quantity:

31 - Red Arrow Back Joint Short Half - H19-12631 - Red Arrow Back Joint Short Half - H19-126



31 - Red Arrow Back Joint Short Half - H19-126

31 - Red Arrow Back Joint Short Half - H19-126



Quantity:

32 - Red Arrow Circlip - H19-12932 - Red Arrow Circlip - H19-129



32 - Red Arrow Circlip - H19-129

32 - Red Arrow Circlip - H19-129



Quantity:

33 - Red Arrow Cog - H19-23133 - Red Arrow Cog - H19-231

Price is for a single cog


33 - Red Arrow Cog - H19-231

33 - Red Arrow Cog - H19-231

Price is for a single cog


Quantity:

34 - Red Arrow Back Joint Long Half - H19-232 (Non Bearing)34 - Red Arrow Back Joint Long Half - H19-232 (Non Bearing)



34 - Red Arrow Back Joint Long Half - H19-232 (Non Bearing)

34 - Red Arrow Back Joint Long Half - H19-232 (Non Bearing)



Quantity:

35 - Red Arrow Worm Back Spindle - H19-233 (Non Bearing)35 - Red Arrow Worm Back Spindle - H19-233 (Non Bearing)



35 - Red Arrow Worm Back Spindle - H19-233 (Non Bearing)

35 - Red Arrow Worm Back Spindle - H19-233 (Non Bearing)



Quantity:

36 - Red Arrow Pin Back Spindle - H19-234 (Non Bearing)36 - Red Arrow Pin Back Spindle - H19-234 (Non Bearing)



36 - Red Arrow Pin Back Spindle - H19-234 (Non Bearing)

36 - Red Arrow Pin Back Spindle - H19-234 (Non Bearing)



Quantity:

37 - Red Arrow Short Spindle Pin - H19-23537 - Red Arrow Short Spindle Pin - H19-235



37 - Red Arrow Short Spindle Pin - H19-235

37 - Red Arrow Short Spindle Pin - H19-235



Quantity:

38 - Red Arrow Bearing 629 2RS38 - Red Arrow Bearing 629 2RS



38 - Red Arrow Bearing 629 2RS

38 - Red Arrow Bearing 629 2RS



Quantity:

39 - Red Arrow Back Joint Long Half - H19-130 (Bearing)39 - Red Arrow Back Joint Long Half - H19-130 (Bearing)



39 - Red Arrow Back Joint Long Half - H19-130 (Bearing)

39 - Red Arrow Back Joint Long Half - H19-130 (Bearing)



Quantity:

40 - Red Arrow Worm Back Spindle - H19-127 (Bearing)40 - Red Arrow Worm Back Spindle - H19-127 (Bearing)



40 - Red Arrow Worm Back Spindle - H19-127 (Bearing)

40 - Red Arrow Worm Back Spindle - H19-127 (Bearing)



Quantity:

41 - Red Arrow Pin Back Spindle - H19-128 (Bearing)41 - Red Arrow Pin Back Spindle - H19-128 (Bearing)



41 - Red Arrow Pin Back Spindle - H19-128 (Bearing)

41 - Red Arrow Pin Back Spindle - H19-128 (Bearing)



Quantity:
