Lister Nitro-X Spare Parts

Shearing Equipment|Spares|Handpiece Spares|Lister Spare Parts|Lister Nitro-X Spare Parts

Occasionally spare parts may need to be ordered from our suppliers. We will notify you when your order is processed if any delay will be greater than 3 working days.

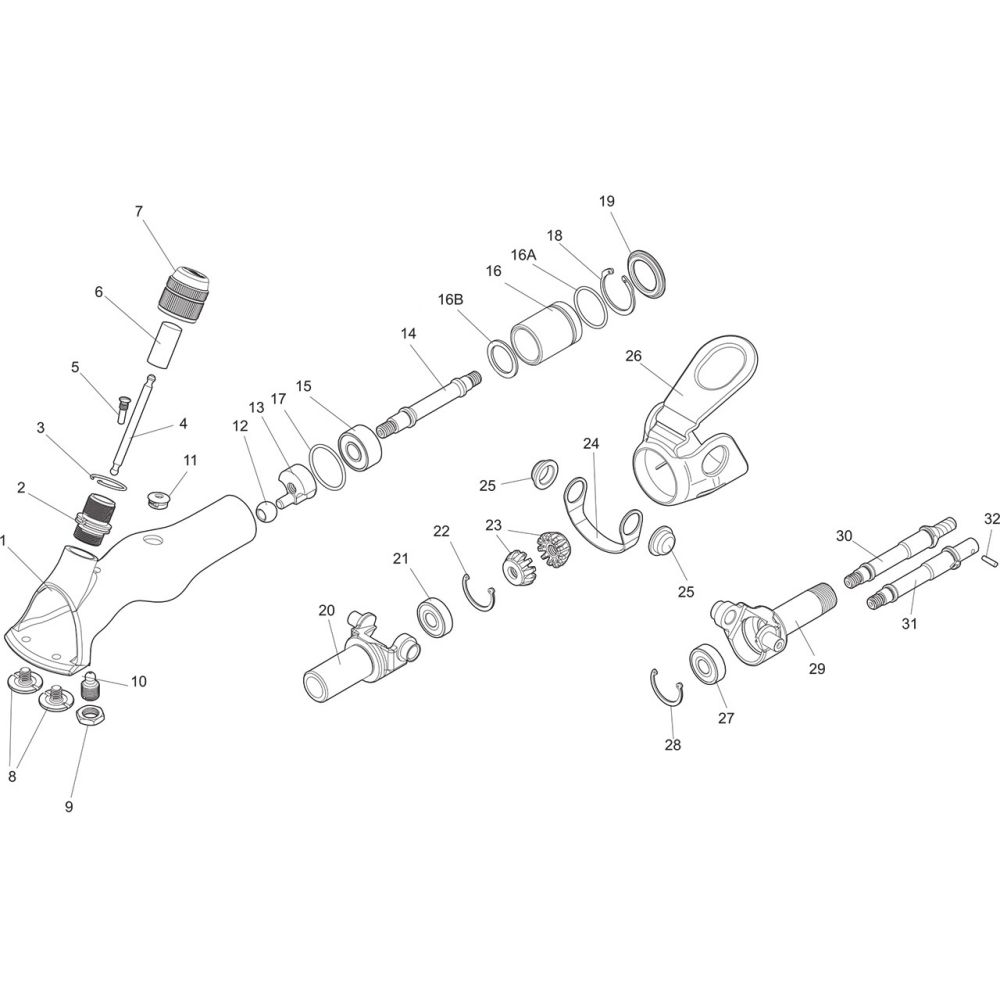

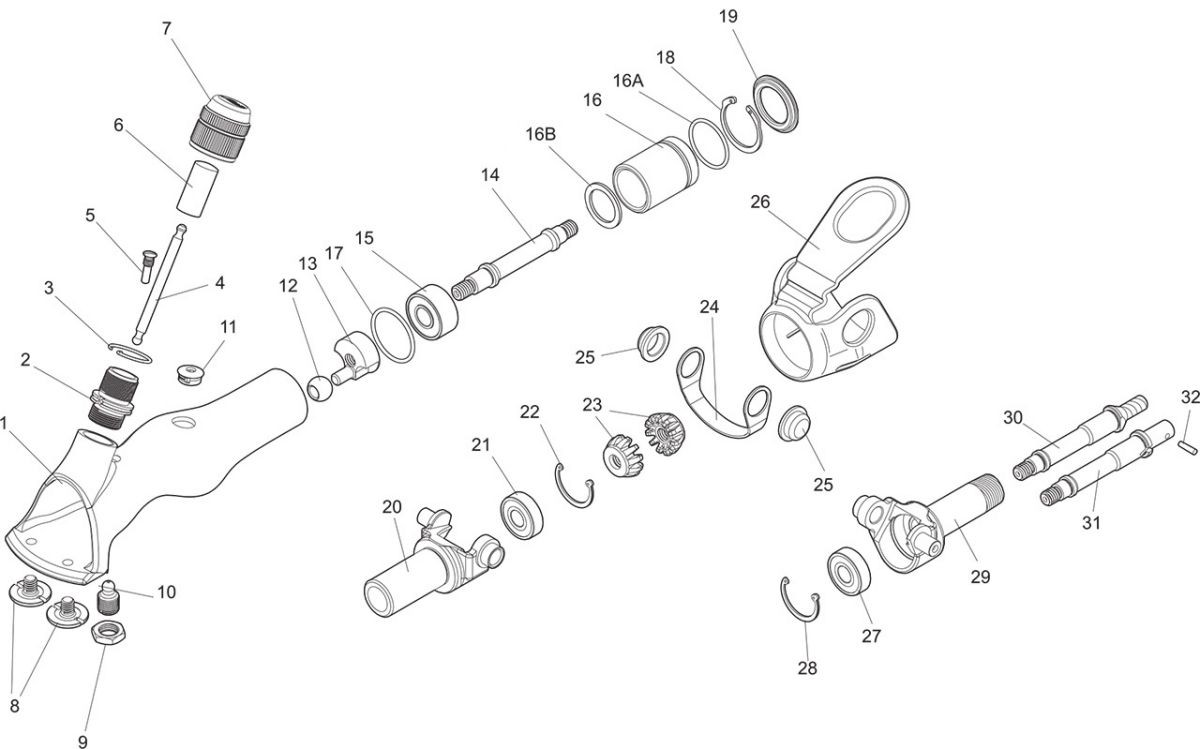

Lister Nitro-X Handpiece Parts

2 - Lid Bush

Part number:249-15030

£14.57

Details ...

3 - Tension Lock Ring

Part number:249-00020

£1.25

Details ...

4 - Tension Pin

Part number:249-00008

£8.00

Details ...

5 - Fork Body Retaining Screw

Part number:249-17240

£4.15

Details ...

6 - Sliding Sleeve

Part number:249-00010

£8.00

Details ...

7 - Tension Nut

Part number:249-17291

£25.28

Details ...

8 - Safety Screw Comb

Price is for a single screw

Part number:H90-002

£4.00

Details ...

9 - Adjusting Locknut

Part number:249-10730

£4.54

Details ...

10 - Fulcrum Post

Part number:249-00161

£8.25

Details ...

11 - Inspection Hole Plug

Part number:249-17640

£1.21

Details ...

12 - Crank Roller

Part number:157-00151

£9.15

Details ...

13 - Crank Head

Part number:249-17080

£10.85

Details ...

14 - Crank Spindle

Part number:249-17070

£24.36

Details ...

15 - Crank Spindle Ball Bearing

Part number:249-17030

£10.20

Details ...

16 - Sleeve Bush

No Longer Available - Discontinued.

Part number:249-17043

£23.64

Details ...

16A - O-Ring for Sleeve Bush

Part number:SH27586A

£2.00

Details ...

16B - Spacer for Sleeve Bush

Part number:249-17670

£1.31

Details ...

17 - O-Ring for Bearing

No Longer Available - Discontinued.

Part number:249-17680

£2.61

Details ...

18 - Flat Circlip

Part number:SH37052A

£2.56

Details ...

19 - Handpiece Body Seal

Part number:249-17090

£6.08

Details ...

20 - Backjoint Shorthalf Assembly

Includes items 21 & 22

Part number:249-17100

£92.88

Details ...

21 - Backjoint Ball Bearing

Part number:803105

£8.40

Details ...

22 - Internal Circlip

Part number:249-17440

£3.10

Details ...

23 - 11 Tooth Cog

Price is for a single cog

Part number:278-00072

£19.27

Details ...

24 - Joint Spring

Part number:249-16210

£6.08

Details ...

25 - Joint Cap

Price is for a single cap

Part number:249-16200

£4.78

Details ...

26 - Joint Guard

£8.00

Details ...

27 - Backjoint Ball Bearing

Part number:803105

£8.40

Details ...

28 - Internal Circlip

Part number:249-17440

£3.10

Details ...

29 - Backjoint Longhalf Assembly

Includes items 27 & 28

Part number:249-17130

£80.44

Details ...

30 - Splined Spindle (Worm Drive)

Part number:249-17150

£37.20

Details ...

31 - Short Spindle Assembly (Pin Drive)

Includes item 32

Part number:249-17170

£26.95

Details ...

32 - Spindle Pin

Part number:154-00034

£3.00

Details ...

Lister Fork Body

1 - Wide Fork Assembly

Comprising items 2 - 9

Part number:249-17210

£81.14

Details ...

2 - Wide Fork

Part number:249-17210

£81.14

Details ...

3 + 4 - Wide Prong Kit (U-Shape) RH + LH

Part number:249-13430

£36.00

Details ...

5 - Wide Prong Retainer

Part number:249-10220

£2.28

Details ...

6 - Fork Retaining Screw (M4 x 6)

Part number:249-15970

£0.62

Details ...

7 - Fulcrum Cup

Part number:249-18150

£7.00

Details ...

8 - Tension Pin Cup

Part number:249-00017

£9.75

Details ...

9 - Tension Pin Retaining Spring

Part number:249-00032

£2.00

Details ...
