Lister Laser I / II Shearer Spares

Shearing Equipment |  Spares |  Handheld Spares | Lister Laser I / II Shearer Spares

Lister Laser I / II Shearer Spares

Shearing Equipment |  Spares |  Handheld Spares | Lister Laser I / II Shearer Spares

Occasionally spare parts may need to be ordered from our suppliers. We will notify you when your order is processed if any delay will be greater than 3 working days.

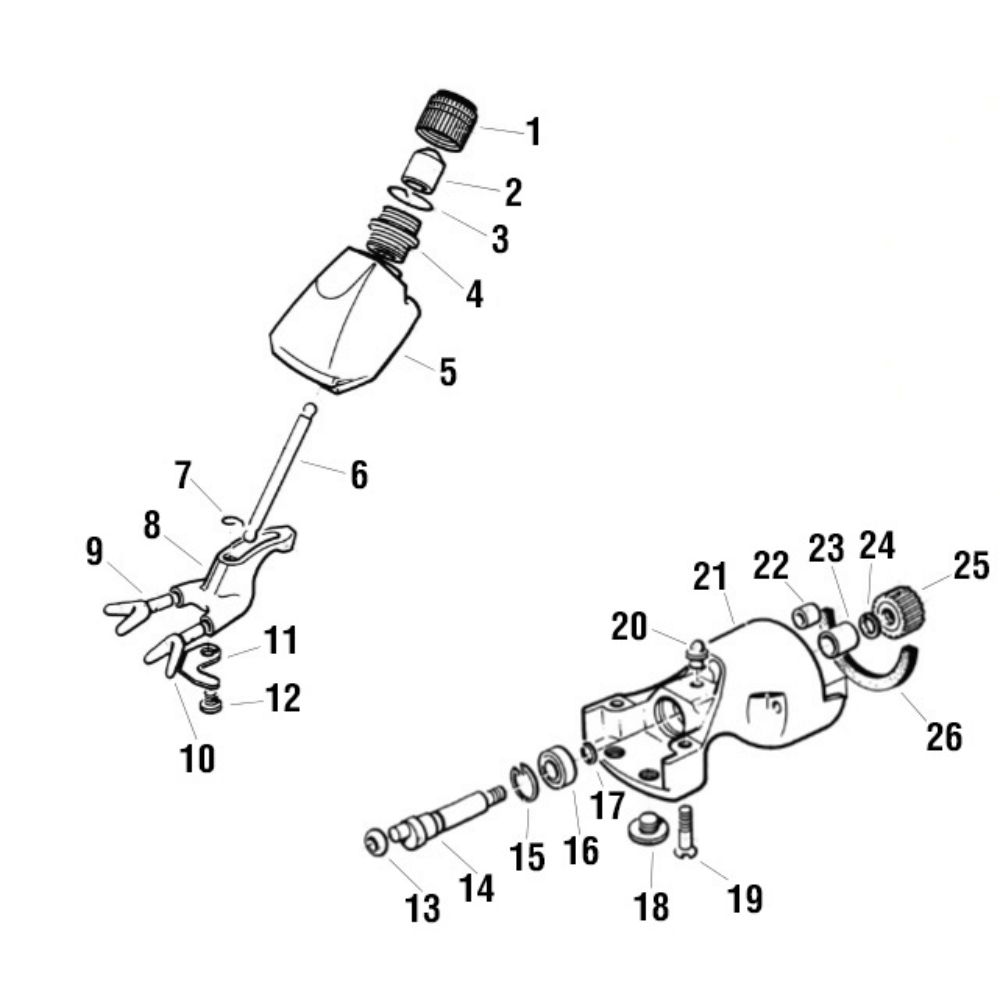

Lister Laser I / II Shearer Head



Lister Laser Shearer Complete HeadLister Laser Shearer Complete Head



Lister Laser Shearer Complete Head

Lister Laser Shearer Complete Head



Quantity:

1 - Lister Laser Shearer Tension Nut - 249-151001 - Lister Laser Shearer Tension Nut - 249-15100



1 - Lister Laser Shearer Tension Nut - 249-15100

1 - Lister Laser Shearer Tension Nut - 249-15100



Quantity:

2 - Lister Laser Shearer Sliding Sleeve - 249-000102 - Lister Laser Shearer Sliding Sleeve - 249-00010



2 - Lister Laser Shearer Sliding Sleeve - 249-00010

2 - Lister Laser Shearer Sliding Sleeve - 249-00010



Quantity:

3 - Lister Laser Shearer Tension Lock Ring - 249-000203 - Lister Laser Shearer Tension Lock Ring - 249-00020



3 - Lister Laser Shearer Tension Lock Ring - 249-00020

3 - Lister Laser Shearer Tension Lock Ring - 249-00020



Quantity:

4 - Lister Laser Shearer Lid Bush - 249-150304 - Lister Laser Shearer Lid Bush - 249-15030



4 - Lister Laser Shearer Lid Bush - 249-15030

4 - Lister Laser Shearer Lid Bush - 249-15030



Quantity:

5 - Lister Laser Shearer Top Casing - 258-323005 - Lister Laser Shearer Top Casing - 258-32300



5 - Lister Laser Shearer Top Casing - 258-32300

5 - Lister Laser Shearer Top Casing - 258-32300



Quantity:

6 - Lister Laser Shearer Tension Pin - 258-323106 - Lister Laser Shearer Tension Pin - 258-32310



6 - Lister Laser Shearer Tension Pin - 258-32310

6 - Lister Laser Shearer Tension Pin - 258-32310



Quantity:

7 - Lister Laser Shearer Tension Pin Retainer - 258-323407 - Lister Laser Shearer Tension Pin Retainer - 258-32340



7 - Lister Laser Shearer Tension Pin Retainer - 258-32340

7 - Lister Laser Shearer Tension Pin Retainer - 258-32340



Quantity:

8 - Lister Laser Shearer Fork Body - 258-322308 - Lister Laser Shearer Fork Body - 258-32230



8 - Lister Laser Shearer Fork Body - 258-32230

8 - Lister Laser Shearer Fork Body - 258-32230



Quantity:

9 - Lister Laser Shearer Prong RH Wide - 249-102009 - Lister Laser Shearer Prong RH Wide - 249-10200



9 - Lister Laser Shearer Prong RH Wide - 249-10200

9 - Lister Laser Shearer Prong RH Wide - 249-10200



Quantity:

10 - Lister Laser Shearer Prong LH Wide - 249-1021010 - Lister Laser Shearer Prong LH Wide - 249-10210



10 - Lister Laser Shearer Prong LH Wide - 249-10210

10 - Lister Laser Shearer Prong LH Wide - 249-10210



Quantity:

11 - Lister Laser Shearer Prong Retainer - 258-3233011 - Lister Laser Shearer Prong Retainer - 258-32330



11 - Lister Laser Shearer Prong Retainer - 258-32330

11 - Lister Laser Shearer Prong Retainer - 258-32330



Quantity:

12 - Lister Laser Shearer Screw M3 x 5mm - 258-3280012 - Lister Laser Shearer Screw M3 x 5mm - 258-32800



12 - Lister Laser Shearer Screw M3 x 5mm - 258-32800

12 - Lister Laser Shearer Screw M3 x 5mm - 258-32800



Quantity:

13 - Lister Laser Shearer Crank Roller - 157-0015113 - Lister Laser Shearer Crank Roller - 157-00151



13 - Lister Laser Shearer Crank Roller - 157-00151

13 - Lister Laser Shearer Crank Roller - 157-00151



Quantity:

14 - Lister Laser Shearer Crank Spindle - 258-3228014 - Lister Laser Shearer Crank Spindle - 258-32280



14 - Lister Laser Shearer Crank Spindle - 258-32280

14 - Lister Laser Shearer Crank Spindle - 258-32280



Quantity:

15 - Lister Laser Shearer Circlip -258-3242015 - Lister Laser Shearer Circlip -258-32420



15 - Lister Laser Shearer Circlip -258-32420

15 - Lister Laser Shearer Circlip -258-32420



Quantity:

16 - Lister Laser Shearer Ball-Race - 249-1225016 - Lister Laser Shearer Ball-Race - 249-12250



16 - Lister Laser Shearer Ball-Race - 249-12250

16 - Lister Laser Shearer Ball-Race - 249-12250



Quantity:

17 - Lister Laser Shearer Circlip - 258-3243017 - Lister Laser Shearer Circlip - 258-32430



17 - Lister Laser Shearer Circlip - 258-32430

17 - Lister Laser Shearer Circlip - 258-32430



Quantity:

18 - Lister Laser Shearer Comb Screw - 249-1051018 - Lister Laser Shearer Comb Screw - 249-10510



18 - Lister Laser Shearer Comb Screw - 249-10510

18 - Lister Laser Shearer Comb Screw - 249-10510



Quantity:

19 - Lister Laser Shearer Screw M4 x 20mm - 258-3244019 - Lister Laser Shearer Screw M4 x 20mm - 258-32440



19 - Lister Laser Shearer Screw M4 x 20mm - 258-32440

19 - Lister Laser Shearer Screw M4 x 20mm - 258-32440



Quantity:

20 - Lister Laser Shearer Fulcrum Post - 258-3232020 - Lister Laser Shearer Fulcrum Post - 258-32320



20 - Lister Laser Shearer Fulcrum Post - 258-32320

20 - Lister Laser Shearer Fulcrum Post - 258-32320



Quantity:

21 - Lister Laser Shearer Main Body - 258-3229021 - Lister Laser Shearer Main Body - 258-32290



21 - Lister Laser Shearer Main Body - 258-32290

21 - Lister Laser Shearer Main Body - 258-32290



Quantity:

22 - Lister Laser Shearer Needle Bearing for Gearshaft - 258-3227022 - Lister Laser Shearer Needle Bearing for Gearshaft - 258-32270



22 - Lister Laser Shearer Needle Bearing for Gearshaft - 258-32270

22 - Lister Laser Shearer Needle Bearing for Gearshaft - 258-32270



Quantity:

23 - Lister Laser Shearer Crank Spindle - 258-3224023 - Lister Laser Shearer Crank Spindle - 258-32240



23 - Lister Laser Shearer Crank Spindle - 258-32240

23 - Lister Laser Shearer Crank Spindle - 258-32240



Quantity:

24 - Lister Laser Shearer Oil Seal - 258-3225024 - Lister Laser Shearer Oil Seal - 258-32250



24 - Lister Laser Shearer Oil Seal - 258-32250

24 - Lister Laser Shearer Oil Seal - 258-32250



Quantity:

25 - Lister Laser Shearer Gear - 258-3222025 - Lister Laser Shearer Gear - 258-32220



25 - Lister Laser Shearer Gear - 258-32220

25 - Lister Laser Shearer Gear - 258-32220



Quantity:

26 - Lister Laser Shearer Head Seal - 258-3246026 - Lister Laser Shearer Head Seal - 258-32460



26 - Lister Laser Shearer Head Seal - 258-32460

26 - Lister Laser Shearer Head Seal - 258-32460



Quantity:

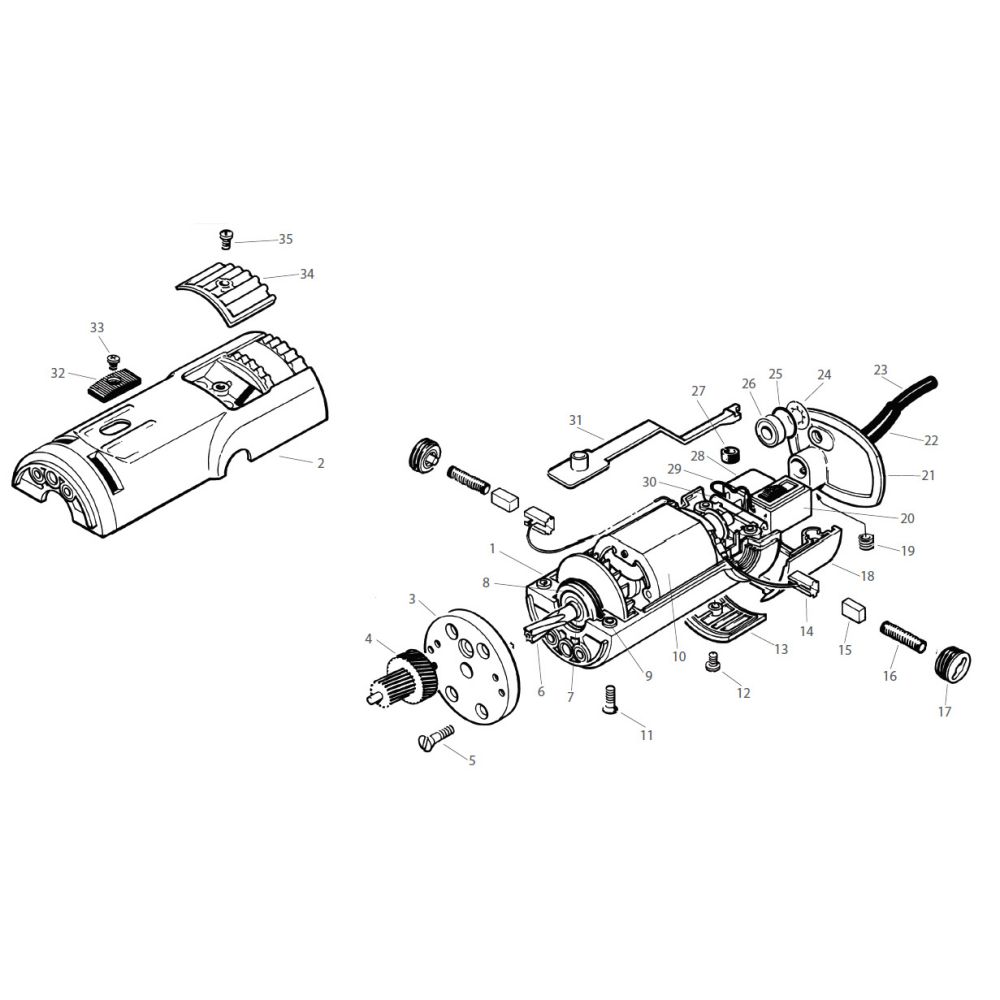

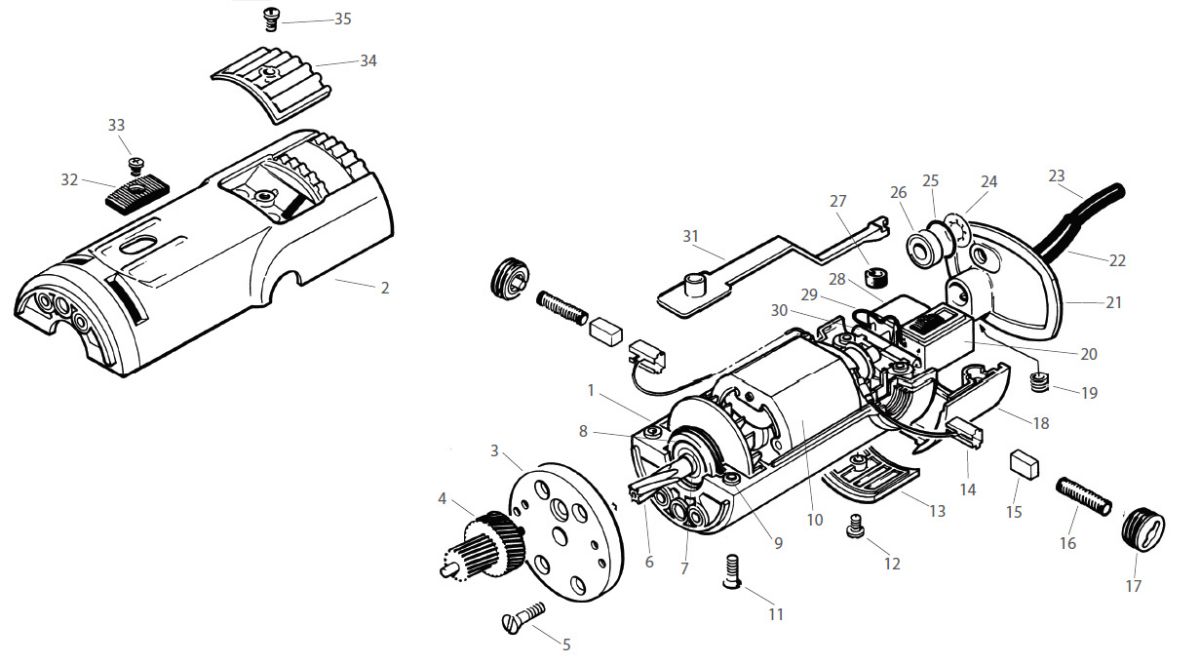

Lister Laser I / II Shearer Body



1 - Lister Laser Shearer Body Casing Bottom - 258-326301 - Lister Laser Shearer Body Casing Bottom - 258-32630



1 - Lister Laser Shearer Body Casing Bottom - 258-32630

1 - Lister Laser Shearer Body Casing Bottom - 258-32630



Quantity:

2 - Lister Laser Shearer Body Casing Top - 258-365602 - Lister Laser Shearer Body Casing Top - 258-36560



2 - Lister Laser Shearer Body Casing Top - 258-36560

2 - Lister Laser Shearer Body Casing Top - 258-36560



Quantity:

3 - Lister Laser Shearer Adapter Plate Assembly - 258-321003 - Lister Laser Shearer Adapter Plate Assembly - 258-32100



3 - Lister Laser Shearer Adapter Plate Assembly - 258-32100

3 - Lister Laser Shearer Adapter Plate Assembly - 258-32100



Quantity:

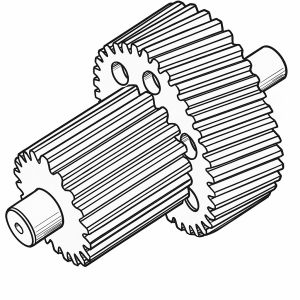

4 - Lister Laser Shearer Intermediate Gearshaft - 258-320204 - Lister Laser Shearer Intermediate Gearshaft - 258-32020



4 - Lister Laser Shearer Intermediate Gearshaft - 258-32020

4 - Lister Laser Shearer Intermediate Gearshaft - 258-32020



Quantity:

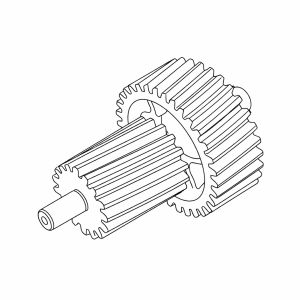

4a - Lister Laser 12v Shearer Intermediate Gearshaft - 258 331304a - Lister Laser 12v Shearer Intermediate Gearshaft - 258 33130



4a - Lister Laser 12v Shearer Intermediate Gearshaft - 258 33130

4a - Lister Laser 12v Shearer Intermediate Gearshaft - 258 33130



Quantity:

5 - Lister Laser Shearer Screw M4 x 12mm - 258-321405 - Lister Laser Shearer Screw M4 x 12mm - 258-32140



5 - Lister Laser Shearer Screw M4 x 12mm - 258-32140

5 - Lister Laser Shearer Screw M4 x 12mm - 258-32140



Quantity:

6 - Lister Laser Shearer Armature 240V - 258-365206 - Lister Laser Shearer Armature 240V - 258-36520



6 - Lister Laser Shearer Armature 240V - 258-36520

6 - Lister Laser Shearer Armature 240V - 258-36520



Quantity:

7 - Lister Laser Shearer Circlip - 258-310907 - Lister Laser Shearer Circlip - 258-31090



7 - Lister Laser Shearer Circlip - 258-31090

7 - Lister Laser Shearer Circlip - 258-31090



Quantity:

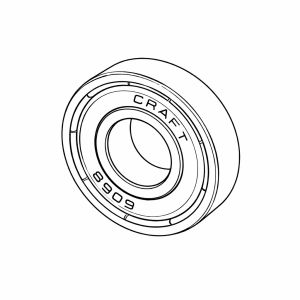

8 - Lister Laser Shearer Ball Bearing - 258-310808 - Lister Laser Shearer Ball Bearing - 258-31080



8 - Lister Laser Shearer Ball Bearing - 258-31080

8 - Lister Laser Shearer Ball Bearing - 258-31080



Quantity:

9 - Lister Laser Shearer O-Ring - 258-311209 - Lister Laser Shearer O-Ring - 258-31120



9 - Lister Laser Shearer O-Ring - 258-31120

9 - Lister Laser Shearer O-Ring - 258-31120



Quantity:

10 - Lister Laser Shearer Motor 240V - 258-3653010 - Lister Laser Shearer Motor 240V - 258-36530



10 - Lister Laser Shearer Motor 240V - 258-36530

10 - Lister Laser Shearer Motor 240V - 258-36530



Quantity:

11 - Lister Laser Shearer Self Tapping Screw - 258-3276011 - Lister Laser Shearer Self Tapping Screw - 258-32760



11 - Lister Laser Shearer Self Tapping Screw - 258-32760

11 - Lister Laser Shearer Self Tapping Screw - 258-32760



Quantity:

12 - Lister Laser Shearer Screw M3 x 10mm - 258-3131012 - Lister Laser Shearer Screw M3 x 10mm - 258-31310



12 - Lister Laser Shearer Screw M3 x 10mm - 258-31310

12 - Lister Laser Shearer Screw M3 x 10mm - 258-31310



Quantity:

13 - Lister Laser Shearer Filter - 258-3130013 - Lister Laser Shearer Filter - 258-31300



13 - Lister Laser Shearer Filter - 258-31300

13 - Lister Laser Shearer Filter - 258-31300



Quantity:

14 - Lister Laser Shearer Brush Holder - 258-3119014 - Lister Laser Shearer Brush Holder - 258-31190



14 - Lister Laser Shearer Brush Holder - 258-31190

14 - Lister Laser Shearer Brush Holder - 258-31190



Quantity:

15 - Lister Laser Shearer Brush - 258-3120015 - Lister Laser Shearer Brush - 258-31200



15 - Lister Laser Shearer Brush - 258-31200

15 - Lister Laser Shearer Brush - 258-31200



Quantity:

16 - Lister Laser Shearer Spring - 258-3121016 - Lister Laser Shearer Spring - 258-31210



16 - Lister Laser Shearer Spring - 258-31210

16 - Lister Laser Shearer Spring - 258-31210



Quantity:

17 - Lister Laser Shearer Brush Cup - 258-3122017 - Lister Laser Shearer Brush Cup - 258-31220



17 - Lister Laser Shearer Brush Cup - 258-31220

17 - Lister Laser Shearer Brush Cup - 258-31220



Quantity:

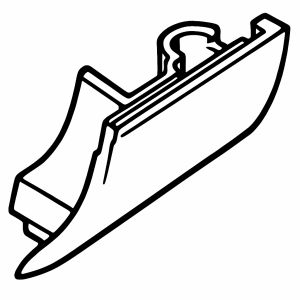

18 - Lister Laser Shearer Lower End Cover - 258-3275018 - Lister Laser Shearer Lower End Cover - 258-32750



18 - Lister Laser Shearer Lower End Cover - 258-32750

18 - Lister Laser Shearer Lower End Cover - 258-32750



Quantity:

19 - Lister Laser Shearer Cable Clamp Screw - 258-3273019 - Lister Laser Shearer Cable Clamp Screw - 258-32730



19 - Lister Laser Shearer Cable Clamp Screw - 258-32730

19 - Lister Laser Shearer Cable Clamp Screw - 258-32730



Quantity:

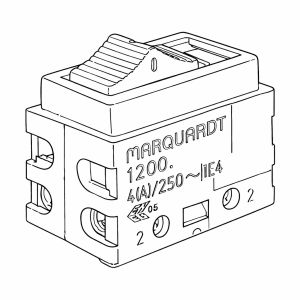

20 - Lister Laser Shearer Switch - 258-3269020 - Lister Laser Shearer Switch - 258-32690



20 - Lister Laser Shearer Switch - 258-32690

20 - Lister Laser Shearer Switch - 258-32690



Quantity:

21 - Lister Laser Shearer Rear End Cover - 258-3272021 - Lister Laser Shearer Rear End Cover - 258-32720



21 - Lister Laser Shearer Rear End Cover - 258-32720

21 - Lister Laser Shearer Rear End Cover - 258-32720



Quantity:

22 - Lister Laser Shearer Cable Support - 258-3274022 - Lister Laser Shearer Cable Support - 258-32740



22 - Lister Laser Shearer Cable Support - 258-32740

22 - Lister Laser Shearer Cable Support - 258-32740



Quantity:

23 - Lister Laser Shearer Mains Lead UK - 258-3307023 - Lister Laser Shearer Mains Lead UK - 258-33070



23 - Lister Laser Shearer Mains Lead UK - 258-33070

23 - Lister Laser Shearer Mains Lead UK - 258-33070



Quantity:

24 - Lister Laser Shearer Washer - 258-3114024 - Lister Laser Shearer Washer - 258-31140



24 - Lister Laser Shearer Washer - 258-31140

24 - Lister Laser Shearer Washer - 258-31140



Quantity:

25 - Lister Laser Shearer O-Ring - 258-3113025 - Lister Laser Shearer O-Ring - 258-31130



25 - Lister Laser Shearer O-Ring - 258-31130

25 - Lister Laser Shearer O-Ring - 258-31130



Quantity:

26 - Lister Laser Shearer Ball Bearing - 258-3266026 - Lister Laser Shearer Ball Bearing - 258-32660



26 - Lister Laser Shearer Ball Bearing - 258-32660

26 - Lister Laser Shearer Ball Bearing - 258-32660



Quantity:

28 - Lister Laser Shearer Overload Switch 240V - 258-3670028 - Lister Laser Shearer Overload Switch 240V - 258-36700



28 - Lister Laser Shearer Overload Switch 240V - 258-36700

28 - Lister Laser Shearer Overload Switch 240V - 258-36700



Quantity:

29 - Lister Laser Shearer Switch Lead - 258-3271029 - Lister Laser Shearer Switch Lead - 258-32710



29 - Lister Laser Shearer Switch Lead - 258-32710

29 - Lister Laser Shearer Switch Lead - 258-32710



Quantity:

30 - Lister Laser Shearer Capacitor - 258-3305030 - Lister Laser Shearer Capacitor - 258-33050



30 - Lister Laser Shearer Capacitor - 258-33050

30 - Lister Laser Shearer Capacitor - 258-33050



Quantity:

31 - Lister Laser Shearer Switch Lever - 258-3267031 - Lister Laser Shearer Switch Lever - 258-32670



31 - Lister Laser Shearer Switch Lever - 258-32670

31 - Lister Laser Shearer Switch Lever - 258-32670



Quantity:

32 - Lister Laser Shearer Switch Button - 258-3669032 - Lister Laser Shearer Switch Button - 258-36690



32 - Lister Laser Shearer Switch Button - 258-36690

32 - Lister Laser Shearer Switch Button - 258-36690



Quantity:

33 - Lister Laser Shearer Screw M3 x 4mm - 258-3118033 - Lister Laser Shearer Screw M3 x 4mm - 258-31180



33 - Lister Laser Shearer Screw M3 x 4mm - 258-31180

33 - Lister Laser Shearer Screw M3 x 4mm - 258-31180



Quantity:

34 - Lister Laser Shearer Filter - 258-3130034 - Lister Laser Shearer Filter - 258-31300



34 - Lister Laser Shearer Filter - 258-31300

34 - Lister Laser Shearer Filter - 258-31300



Quantity:

35 - Lister Laser Shearer Screw M3 x 10mm - 258-3131035 - Lister Laser Shearer Screw M3 x 10mm - 258-31310



35 - Lister Laser Shearer Screw M3 x 10mm - 258-31310

35 - Lister Laser Shearer Screw M3 x 10mm - 258-31310



Quantity:

Shearing Equipment |  Spares |  Handheld Spares | Lister Laser I / II Shearer Spares
