Lister LS201 Spare Parts

Shearing Equipment|Spares|Handpiece Spares|Lister Spare Parts|Lister LS201 Spare Parts

Occasionally spare parts may need to be ordered from our suppliers. We will notify you when your order is processed if any delay will be greater than 3 working days.

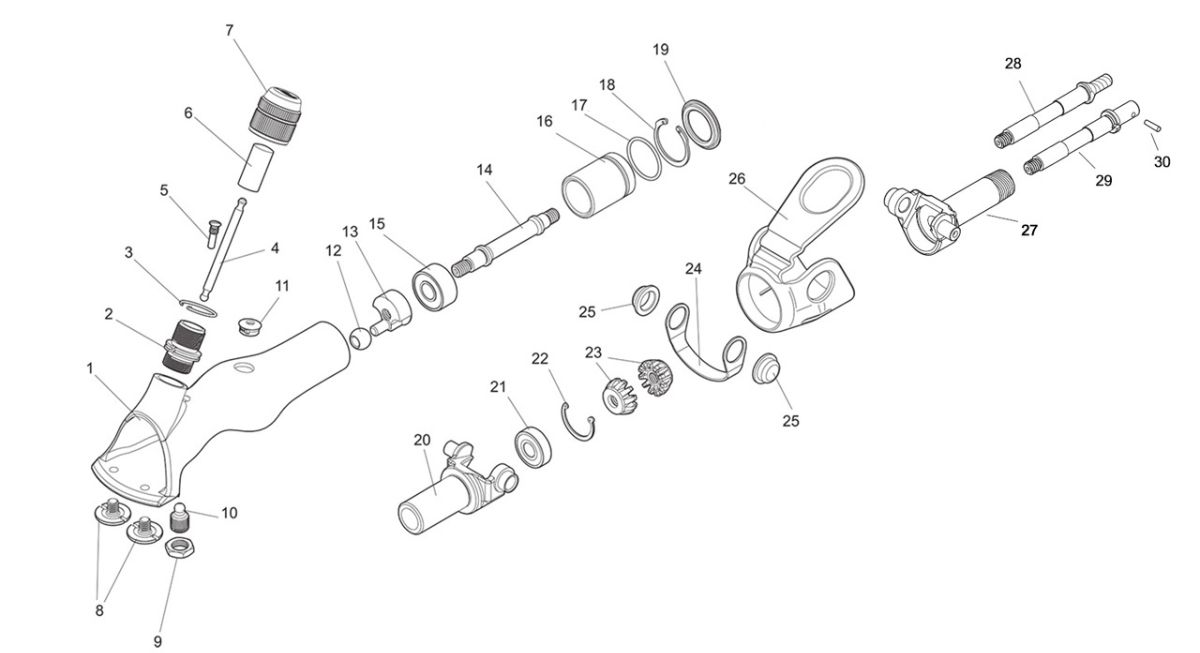

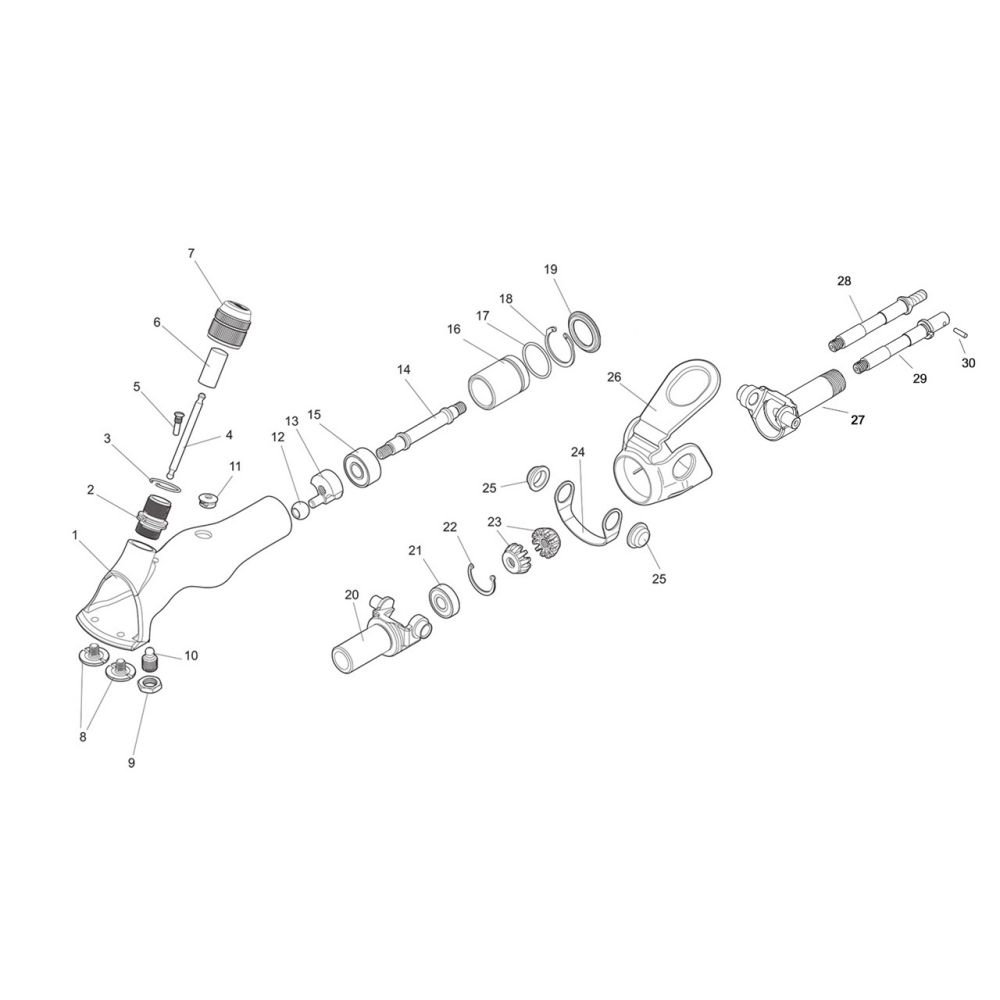

Lister LS201 Handpiece Parts

1 - Body

POA

Details ...

2 - Lid Bush

Part number:249-15030

£14.57

Details ...

3 - Tension Lock Ring

Part number:249-00020

£1.25

Details ...

4 - Tension Pin

Part number:249-00008

£8.00

Details ...

5 - Fork Retaining Screw

Part number:249-17240

£4.15

Details ...

6 - Sliding Sleeve

Part number:249-00010

£8.00

Details ...

7 - Tension Nut

Part number:249-17291

£25.28

Details ...

8 - Comb Screw

Price is for a single screw

Part number:H90-002

£4.00

Details ...

9 - Adjusting Locknut

Part number:249-10730

£4.54

Details ...

10 - Fulcrum Post

Part number:249-00161

£8.25

Details ...

11 - Inspection Hole Plug

Part number:249-17640

£1.21

Details ...

12 - Crank Roller

Part number:157-00151

£9.15

Details ...

13 - Crank Head

Part number:249-17080

£10.85

Details ...

14 - Crank Spindle

Part number:249-17070

£24.36

Details ...

15 - Crank Spindle Ball Bearing

Part number:249-17031

£10.20

Details ...

16 - Sleeve Bush

Part number:249-17043

£23.64

Details ...

17 - O-Ring for Sleeve Bush

Part number:SH27586A

£2.25

Details ...

18 - Flat Circlip

Part number:SH37052A

£2.54

Details ...

19 - Handpiece Body Seal

Part number:249-17090

£6.08

Details ...

20 - Backjoint Shorthalf Assembly

Includes items 21 + 22

Part number:249-17100

£92.88

Details ...

21 - Backjoint Ball Bearing

Part number:SSS-803105

£8.40

Details ...

22 - Internal Circlip

Part number:249-17440

£3.10

Details ...

23 - 11 Tooth Cog

Price is for a single cog

Part number:278-00072

£19.27

Details ...

24 - Joint Spring

Part number:249-16210

£6.08

Details ...

25 - Joint Cap

Price is for a single cap

Part number:249-16200

£4.78

Details ...

26 - Joint Guard

£8.00

Details ...

27 - Backjoint Longhalf Assembly

Part number:249-10553

£83.80

Details ...

28 - Splined Spindle (Worm Drive)

Part number:249-00085

£37.20

Details ...

29 - Short Spindle Assembly (Pin Drive)

Part number:249-10690

£29.38

Details ...

30 - Short Spindle Pin

Part number:154-00034

£2.50

Details ...

Lister Fork Body

Wide Fork Assembly

Comprising items 2 - 9

£109.27

Details ...

2 - Wide Fork

Part number:249-17210

£81.14

Details ...

3 & 4 - Wide Prong Kit (U-Shape) RH & LH

Part number:249-13430

£36.00

Details ...

5 - Wide Prong Retainer

Part number:249-10220

£2.28

Details ...

6 - Fork Retaining Screw (M4 x 6)

Part number:249-15970

£0.62

Details ...

7 - Fulcrum Cup

Part number:249-18150

£7.00

Details ...

8 - Tension Pin Cup

Part number:249-00017

£9.75

Details ...

9 - Tension Pin Retaining Spring

Part number:249-00032

£2.00

Details ...
