Lister Cobra Spare Parts

Shearing Equipment|Spares|Handpiece Spares|Lister Spare Parts|Lister Cobra Spare Parts

Occasionally spare parts may need to be ordered from our suppliers. We will notify you when your order is processed if any delay will be greater than 3 working days.

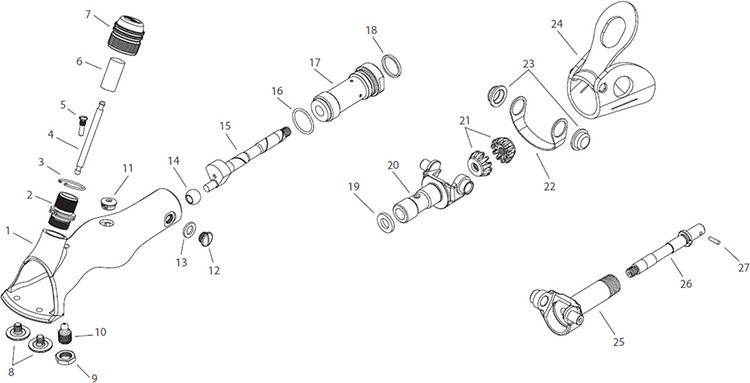

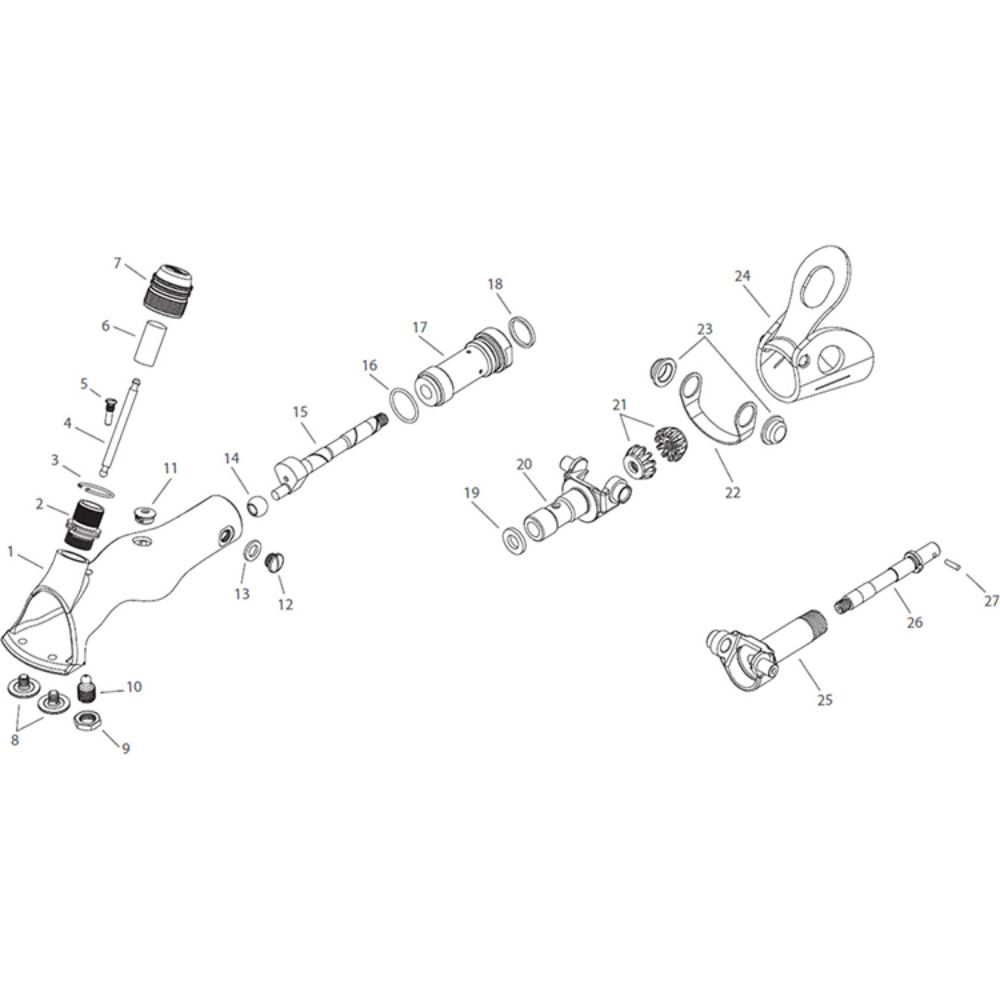

Lister Cobra Handpiece Parts

1 - Body

POA

Details ...

2 - Lid Bush

Part number:249-15030

£14.57

Details ...

3 - Tension Lock Ring

Part number:249-00020

£1.25

Details ...

4 - Tension Pin

Part number:249-00008

£8.00

Details ...

5 - Fork Retaining Screw

Part number:249-17240

£4.15

Details ...

6 - Sliding Sleeve

Part number:249-00010

£8.00

Details ...

7 - Tension Nut

Part number:249-17291

£25.28

Details ...

8 - Dual Slot Comb Screw

Price is for a single screw

Part number:249-10510

£4.00

Details ...

9 - Adjusting Locknut

Part number:249-10730

£4.54

Details ...

10 - Fulcrum Post

Part number:249-00161

£8.25

Details ...

11 - Inspection Hole Plug

Part number:249-15980

£1.21

Details ...

12 - Oil Hole Screw

Part number:249-10680

£6.38

Details ...

13 - Oil Hole Screw Washer

Part number:249-11290

£0.90

Details ...

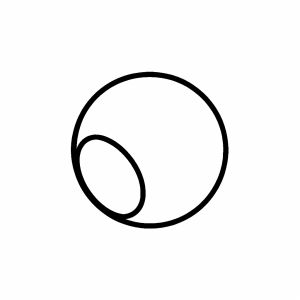

14 - Crank Roller

Part number:157-00151

£9.15

Details ...

15 - Crank Spindle

Part number:249-10530

£34.68

Details ...

16 - O-Ring

Part number:249-11180

£0.51

Details ...

17 - Main Bush Assembly

Part number:249-16130

£50.12

Details ...

18 - Main Bush Oil Seal

Part number:249-10800

£0.83

Details ...

19 - Felt Washer

Part number:249-16160

£1.58

Details ...

20 - Backjoint Shorthalf

Part number:249-16180

£83.56

Details ...

21 - 11 Tooth Cog

Price is for a single cog

Part number:278-00072

£19.27

Details ...

22 - Joint Spring

Part number:249-16210

£6.08

Details ...

23 - Joint Cap

Price is for a single cap

Part number:249-16200

£4.78

Details ...

24 - Rubber Cover

£8.00

Details ...

25 - Backjoint Longhalf

Part number:249-10553

£83.80

Details ...

26 - Short Spindle Assembly (Pin Drive)

Part number:249-10690

£29.38

Details ...

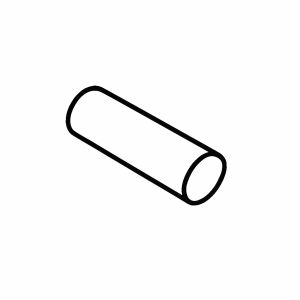

27 - Short Spindle Pin

Part number:154-00034

£2.50

Details ...

26 - Splined Spindle (Worm Drive)

Part number:249-00085

£32.95

Details ...

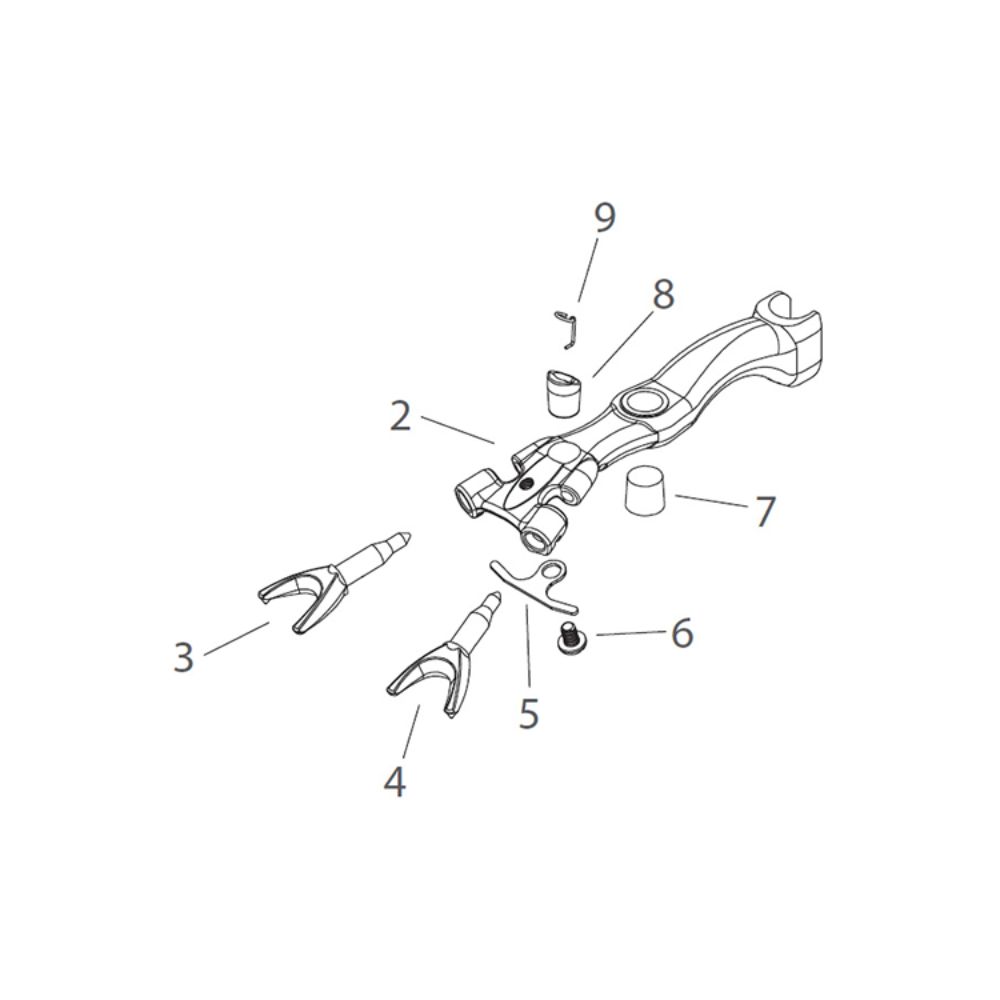

Lister Fork Body

1 - Wide Fork Assembly

Comprising items 2 - 9

Part number:249-17200

£109.27

Details ...

2 - Wide Fork

Part number:249-17210

£81.14

Details ...

3+4 - Wide Prong Kit (U-Shape) RH + LH

Part number:249-13430

£36.00

Details ...

5 - Wide Prong Retainer

Part number:249-10220

£2.28

Details ...

6 - Fork Retaining Screw (M4 x 6)

Part number:249-15970

£0.62

Details ...

7 - Fulcrum Cup

Part number:249-18150

£7.00

Details ...

8 - Tension Pin Cup

Part number:249-00017

£9.75

Details ...

9 - Tension Pin Retaining Spring

Part number:249-00032

£2.00

Details ...
