Heiniger Omega Handpiece Parts

Shearing Equipment|Spares|Handpiece Spares|Heiniger Spare Parts|Heiniger Omega Handpiece Parts

Occasionally spare parts may need to be ordered from our suppliers. We will notify you when your order is processed if any delay will be greater than 3 working days.

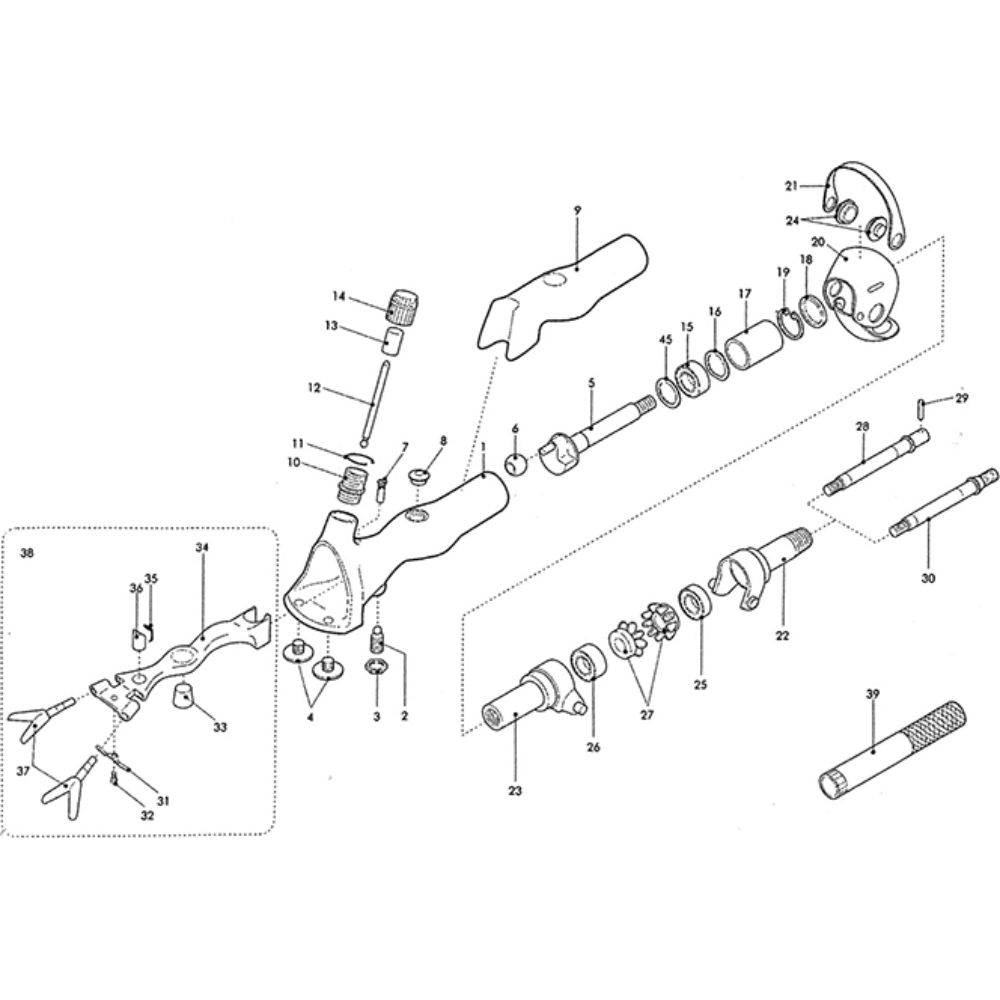

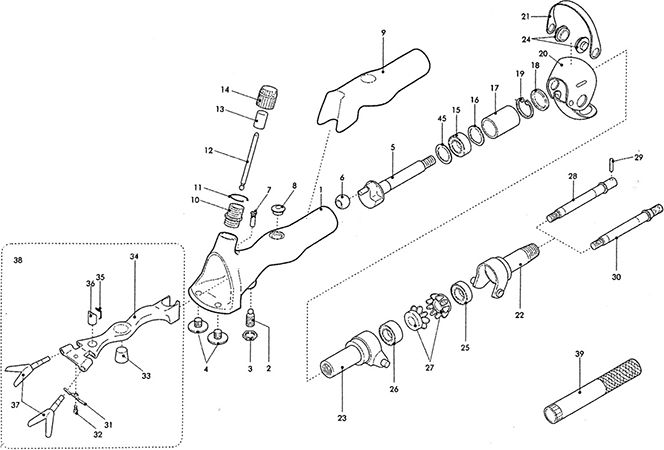

Heiniger Omega Parts

1 - Barrel

POA

Details ...

2 - Centre Post

Part number:721-102

£8.25

Details ...

3 - Centre Post Locknut

Part number:721-103

£3.54

Details ...

4 - Comb Screw

Price is for a single screw

Part number:721-104

£6.00

Details ...

5 - Crankshaft

Part number:721-105

£26.00

Details ...

6 - Crank Roller

Part number:721-106

£6.87

Details ...

7 - Fork Safety Screw

Part number:721-107

£2.49

Details ...

8 - Oil Hole Cap

Part number:721-108

£1.21

Details ...

10 - Tension Nut Bushing Screw

Part number:721-110

£10.92

Details ...

11 - Tension Retaining Ring

Part number:721-135

£2.00

Details ...

12 - Tension Pin

Part number:721-112

£8.00

Details ...

13 - Tension Sleeve

Part number:721-113

£8.00

Details ...

14 - Tension Nut

Part number:721-114

£14.82

Details ...

15 - Bearing Front

Part number:721-115

£10.20

Details ...

16 - Wave Washer/Spring

Part number:721-116

£0.75

Details ...

17 - Gliding Bush

Part number:721-117

£8.16

Details ...

18 - Seal

Part number:721-118

£1.22

Details ...

19 - Circlip/Retaining Ring

Part number:721-119

£3.00

Details ...

20 - Back Joint Cover

Part number:721-120

£12.00

Details ...

21 - Back Joint Spring

Part number:721-121

£7.00

Details ...

22 - Outer Back Joint

POA

Details ...

23 - Inner Back Joint

Part number:721-123

£92.00

Details ...

24 - Back Joint Cap

Price is for a single cap

Part number:721-124

£7.00

Details ...

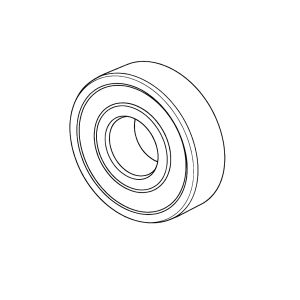

25 - Bearing 608 RS

Part number:717-725

£8.40

Details ...

26 - Bearing 30/8 2RS

Part number:721-126

£10.20

Details ...

27 - Cog Z14

Price is for a single cog

Part number:721-127

£24.62

Details ...

28 - Pin Drive Back Spindle with Spindle Spacer

Spindle Spacer is required for the Spindle & is included in the price.

£32.84

Details ...

29 - Pin DIA 3 x 14mm

Part number:721-129

£6.50

Details ...

30 - Worm Drive Back Spindle with Spindle

Spindle Spacer is required for the Spindle & is included in the price.

£32.84

Details ...

31 - Chicken Feet Retaining Spring

Part number:721-131

£2.64

Details ...

32 - Panhead Screw M4 x 5mm

Part number:721-132

£4.04

Details ...

33 - Centre Post Cup

Part number:721-133

£8.00

Details ...

34 - Fork Body

Part number:721-134

£68.80

Details ...

35 - Tension Pin Retaining Spring

Part number:721-135

£2.00

Details ...

36 - Tension Pin Cup

Part number:721-136

£10.00

Details ...

37 - Chicken Feet (Pair)

Part number:721-137

£38.00

Details ...
