Horner Rambo QuickDraw Spare Parts

Shearing Equipment|Spares|Handheld Spares|Horner Rambo QuickDraw Spare Parts

Occasionally spare parts may need to be ordered from our suppliers. We will notify you when your order is processed if any delay will be greater than 3 working days.

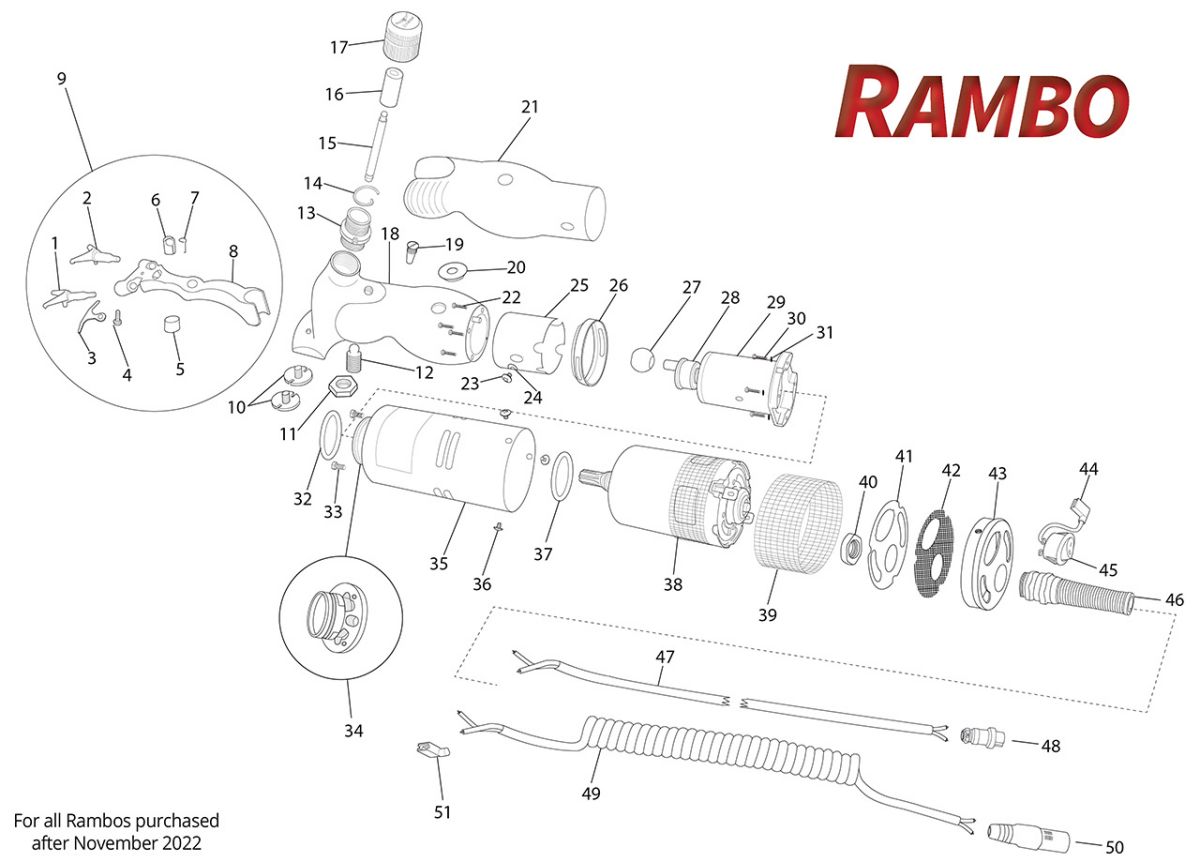

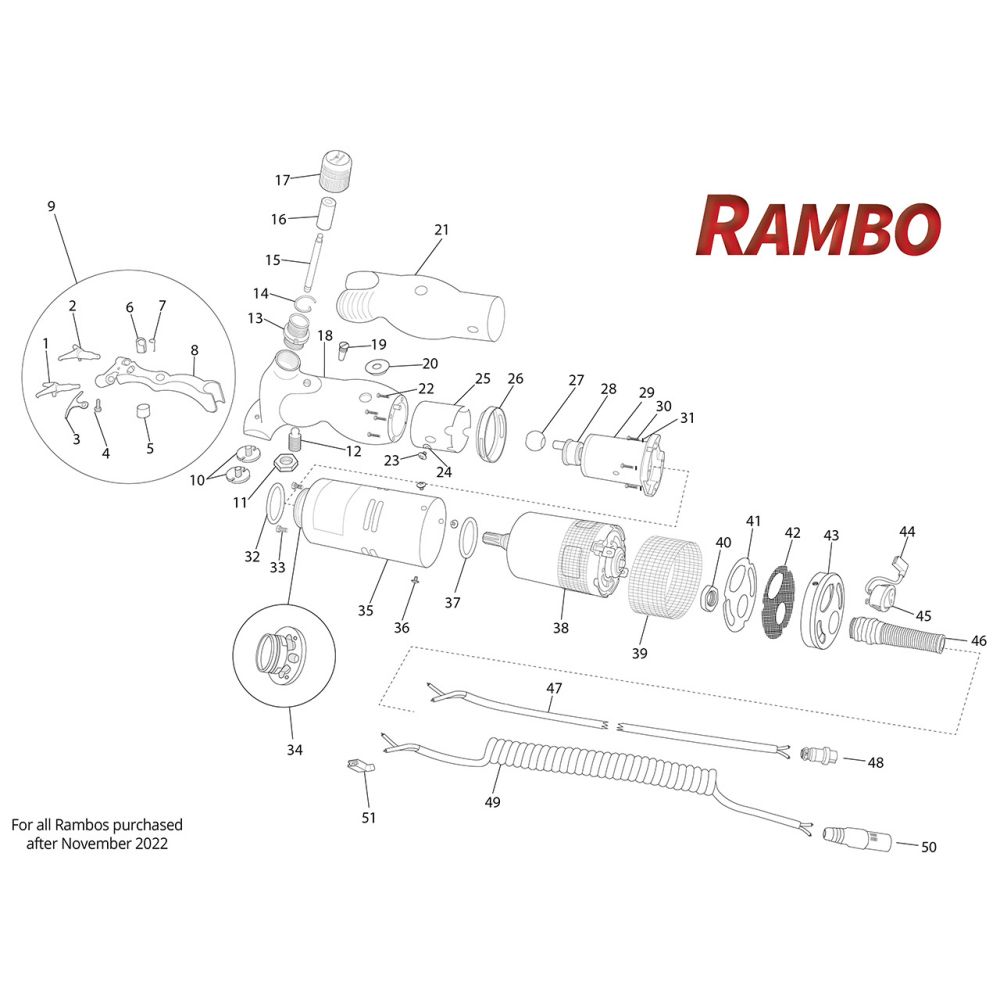

Horner Rambo QuickDraw

Complete Rear Cap and Coiled Flex Assembly for the Rambo QuickDraw

Assembly of parts 38 - 44 and part 46

£35.00

Details ...

1 - Left Hand Fork

Part number:H19-200

£15.00

Details ...

2 - Right Hand Fork

Part number:H19-201

£15.00

Details ...

3 - Fork Retaining Spring

Part number:H19-202

£3.00

Details ...

4 - Fork Retainer Screw

Part number:H19-203

£0.50

Details ...

5 - Fulcrum Cup

Part number:H19-204

£7.00

Details ...

6 - Tension Pin Cup

Part number:H19-205

£9.75

Details ...

7 - Tension Pin Retaining Spring

Part number:H19-206

£2.00

Details ...

8 - Bare Fork Body

Part number:H19-207

£35.00

Details ...

9 - Complete Fork Body

Part number:H19-208

£59.00

Details ...

10 - Comb Screw

Part number:H19-209

£4.00

Details ...

11 - Fulcrum Post Nut

Part number:H19-115

£2.00

Details ...

12 - Fulcrum Post

Part number:H19-116

£8.25

Details ...

13 - Threaded Bush

Part number:H19-117

£11.00

Details ...

14 - Tension Circlip

Part number:H19-213

£1.25

Details ...

15 - Tension Pin

Part number:H19-214

£8.00

Details ...

16 - Sliding Sleeve

Part number:H19-215

£8.00

Details ...

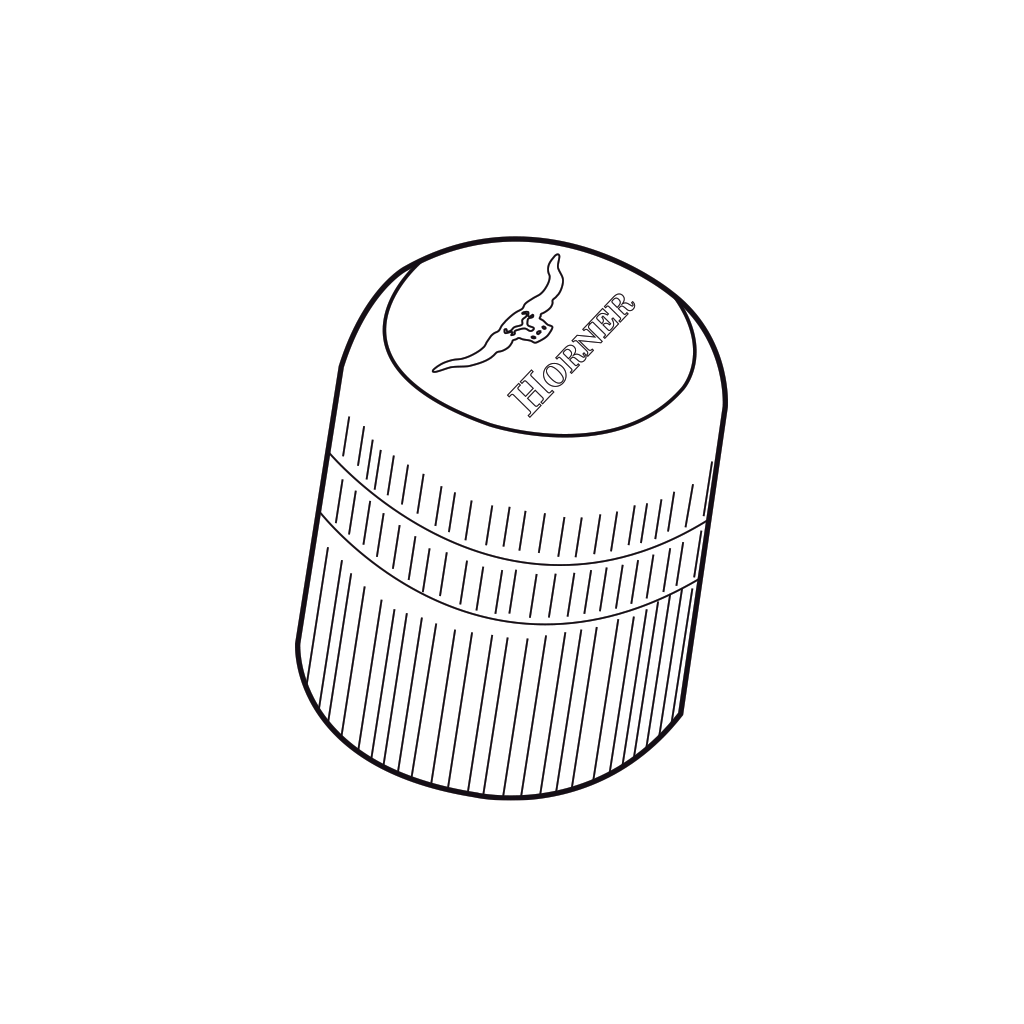

17 - Tension Knob

Part number:H19-118

£16.00

Details ...

18 - Rubber Bung

Part number:H19-217

£1.21

Details ...

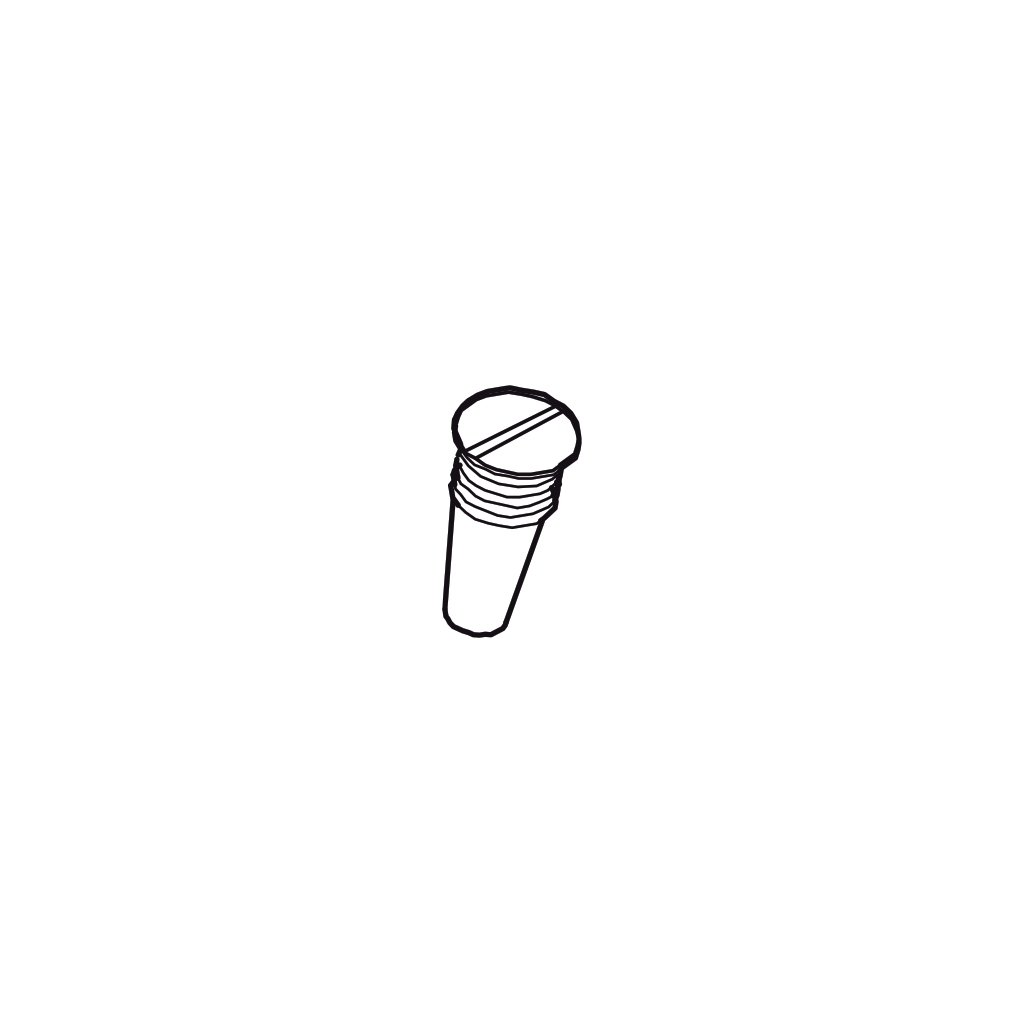

19 - Safety Screw

Part number:H19-132

£3.00

Details ...

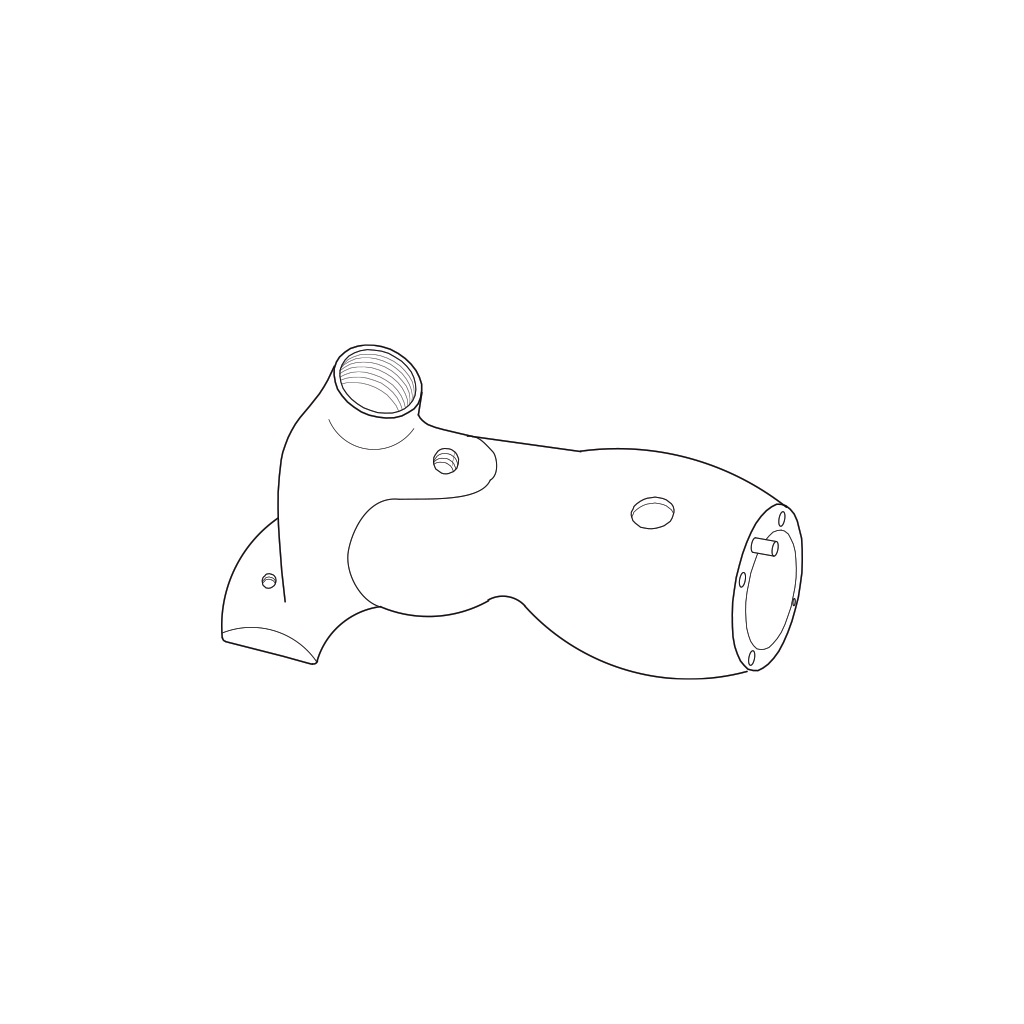

20 - Handle Head

Part number:H60-001

£32.00

Details ...

21 - Handle Cover

Part number:H60-002

£12.00

Details ...

22 - Handle Gear Box Screw

Part number:H60-003

£1.00

Details ...

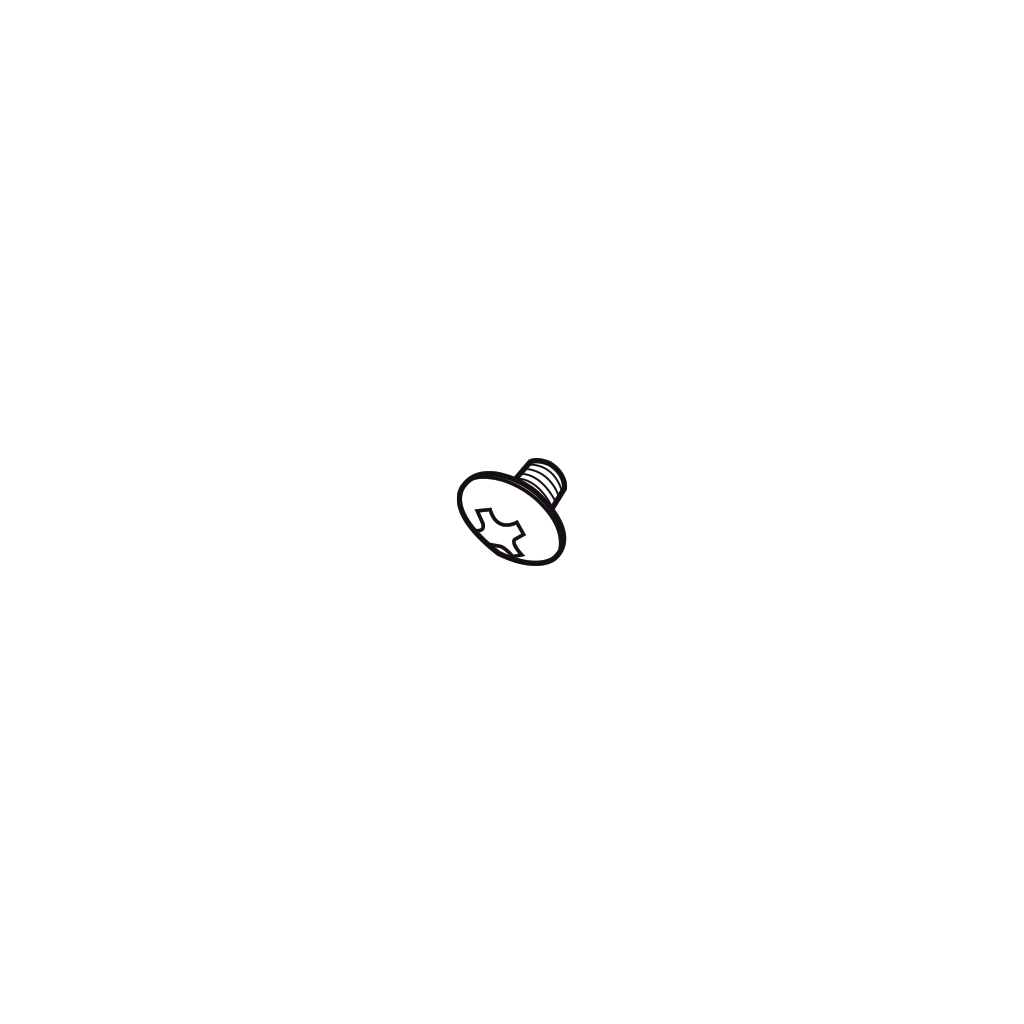

23 - Oil Hole Screw

Part number:H60-004

£1.00

Details ...

24 - Oil Hole Screw Washer

Part number:H60-005

£0.25

Details ...

25 - Heat Proof Sleeve

Part number:H60-006

£12.00

Details ...

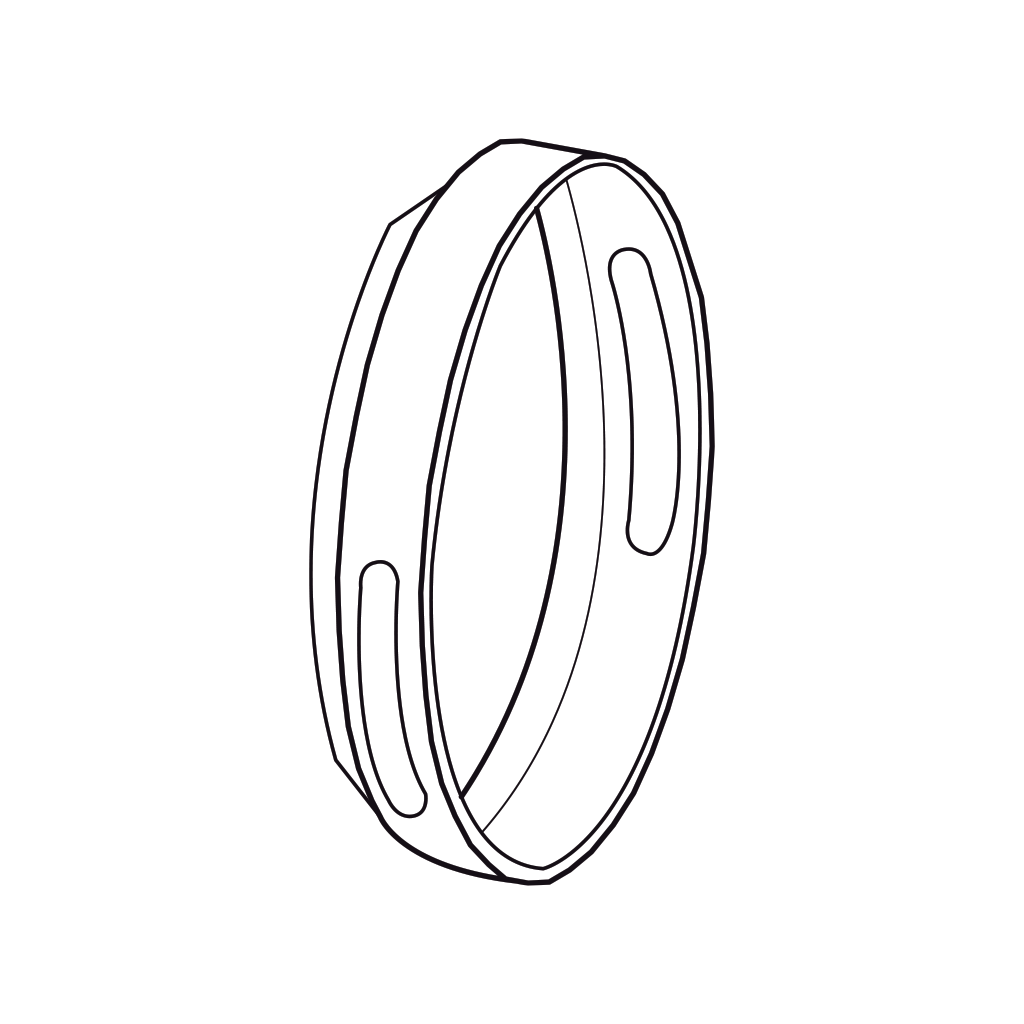

26 - Protective Ring

Part number:H60-007

£4.80

Details ...

27 - Crank Roller

Part number:H19-222

£8.50

Details ...

28 - Crank Body

Part number:H60-008

£6.80

Details ...

29A - Gear Box (Pre-2018 Machines)

Rambo gear box for machines bought before May 2018.

This product has now been discontinued. Please call us for more information.

This product has now been discontinued

Details ...

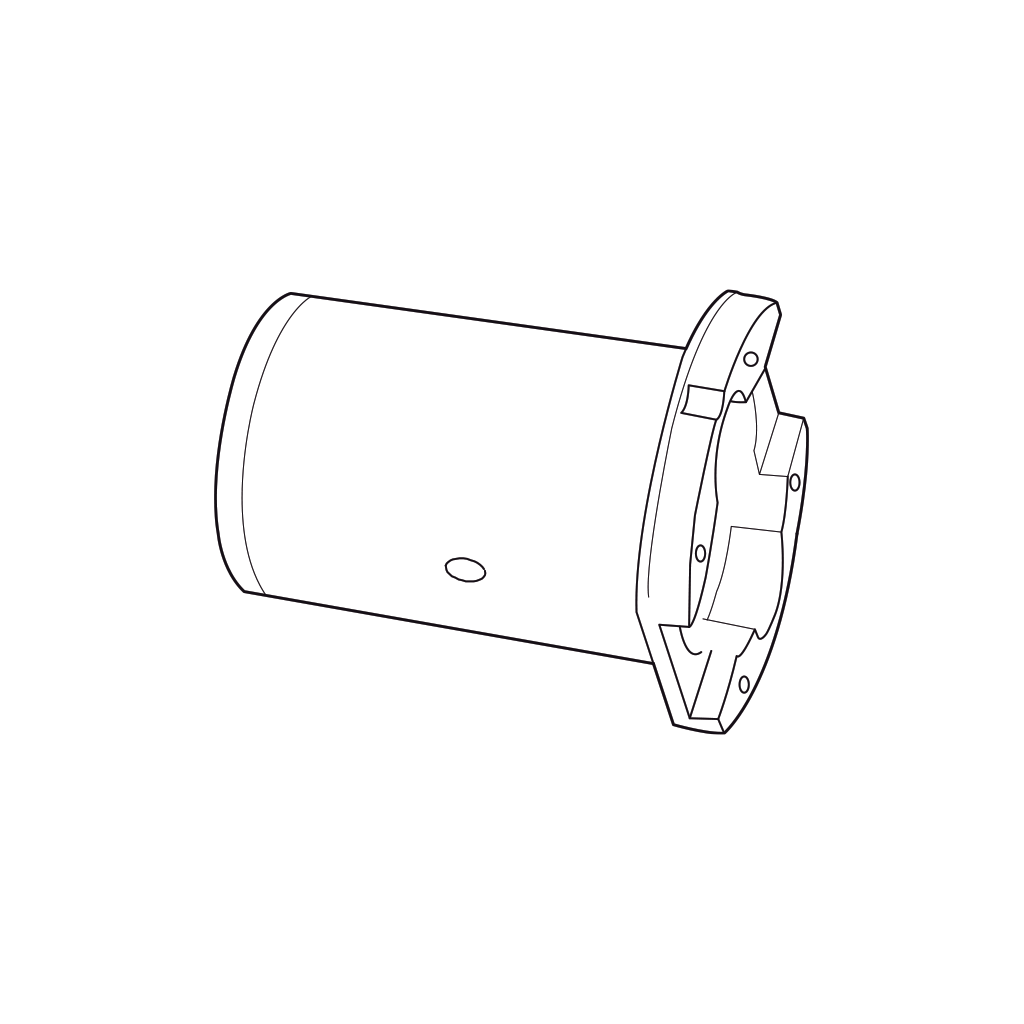

29B - Gear Box (Post-2018 Machines)

Rambo gear box for machines bought after May 2018.

Part number:H60-011B

£66.00

Details ...

30 - Gear Box Motor Screw

Part number:H60-009

£1.00

Details ...

31 - Spring Washer

Part number:H60-010

£0.25

Details ...

32 - O Ring (Outer)

Part number:H60-012

£0.22

Details ...

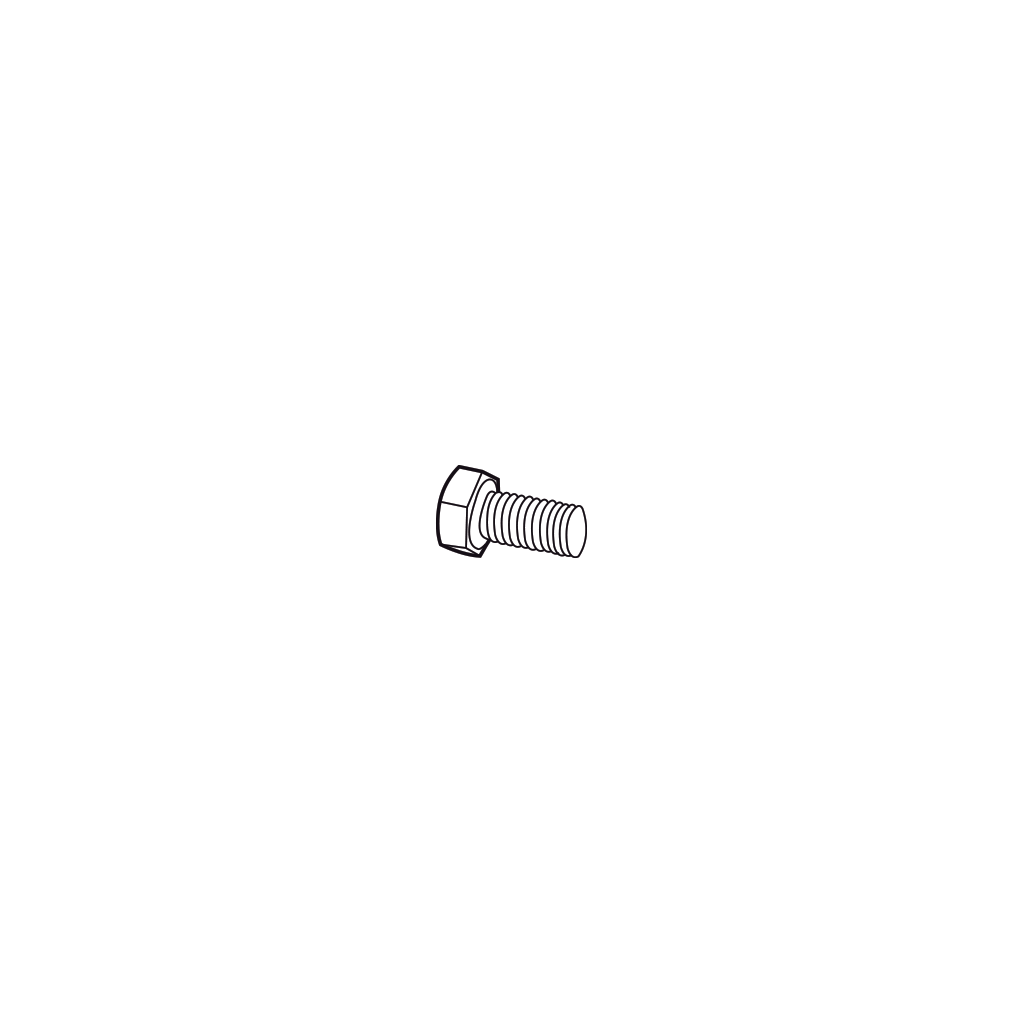

33 - Hexagon Headed Bolt

Part number:H60-013

£0.60

Details ...

34 - Motor Guard

Part number:H60-014

£16.00

Details ...

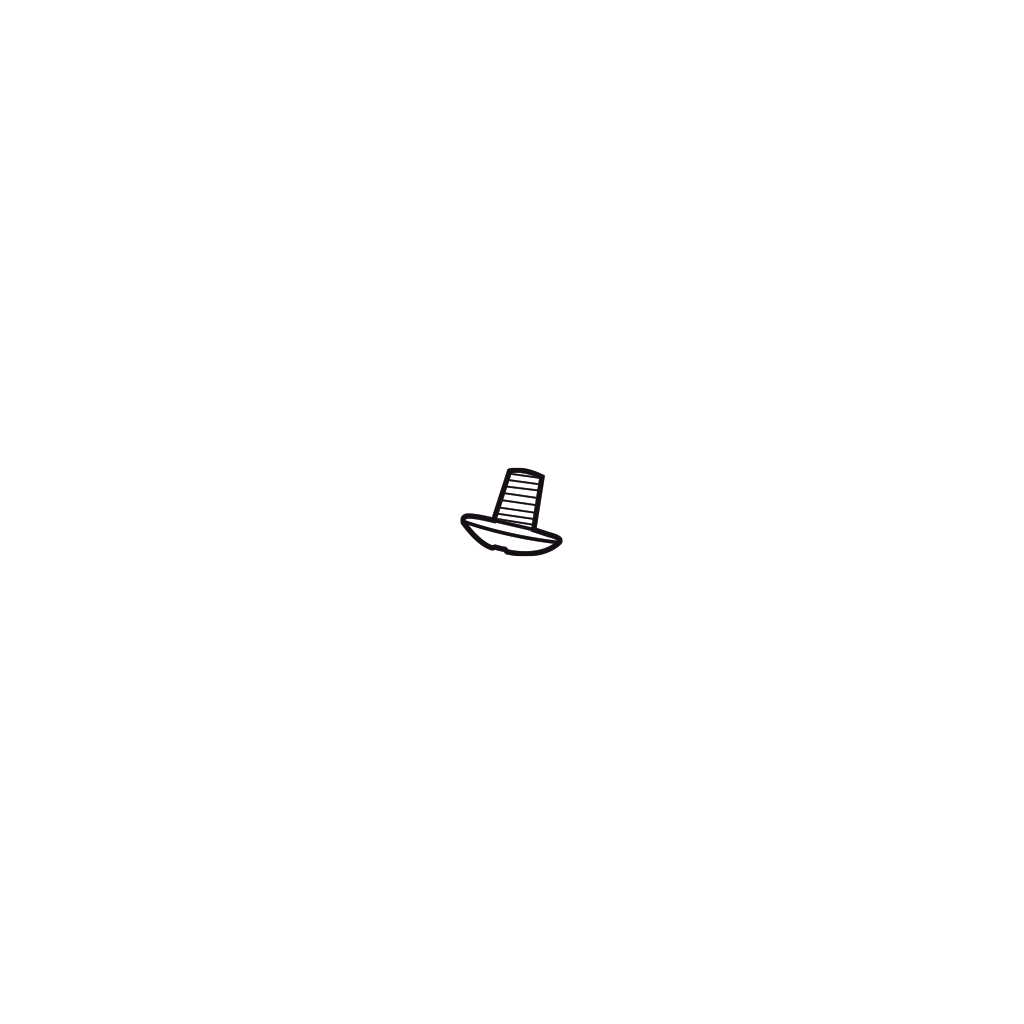

35 - Rear Cap Screw

Part number:H60-015

£0.95

Details ...

36A - Motor Unit (Pre-2018 Machine)

Rambo motor unit for machines bought before May 2018.

Includes part no.37 (motor filtering net).

Part number:H60-016A

£38.00

Details ...

36B - Motor Unit (Post-2018 Machine)

Rambo motor unit for machines bought after May 2018.

Includes part no.37 (motor filtering net).

Part number:H60-016B

£38.00

Details ...

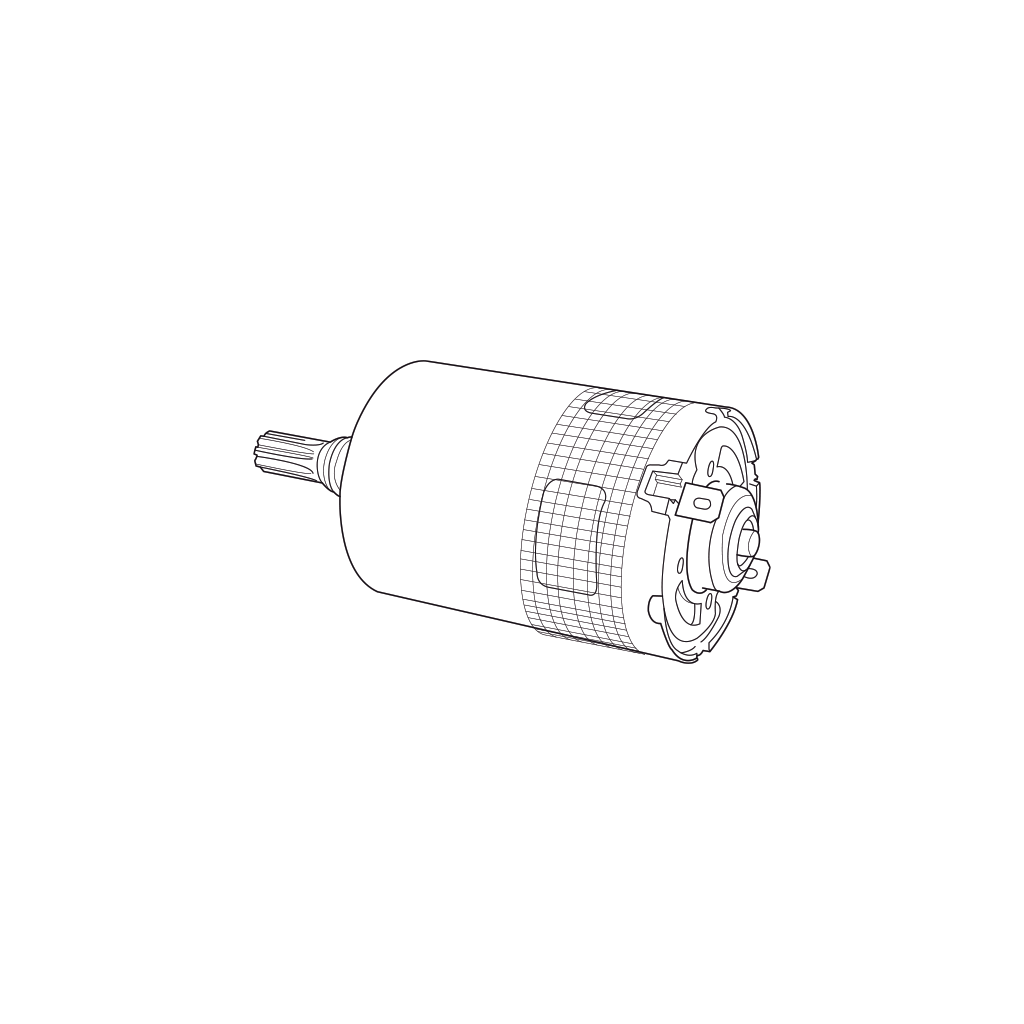

36C - Motor Unit 4.8

Rambo Motor Unit for machines bought after November 2022.

Includes part no.37 (motor filtering net).

Part number:H60-016C

£38.00

Details ...

37 - Motor Filtering Net

Part number:H60-027

£1.50

Details ...

38 - Gland Nut

Part number:H60-018

£0.80

Details ...

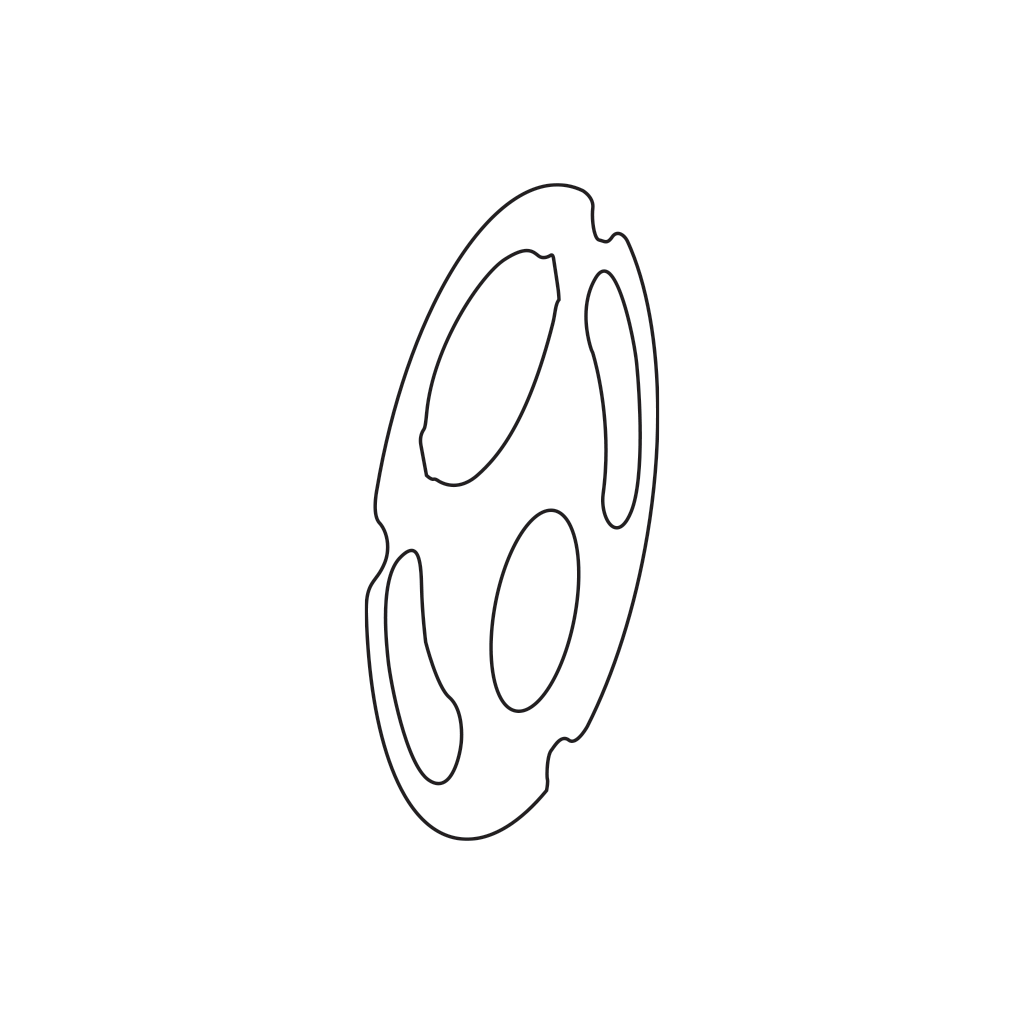

39 - Rear Cap Presser

Part number:H60-020

£2.00

Details ...

40 - Filtering Net

Part number:H60-019

£2.50

Details ...

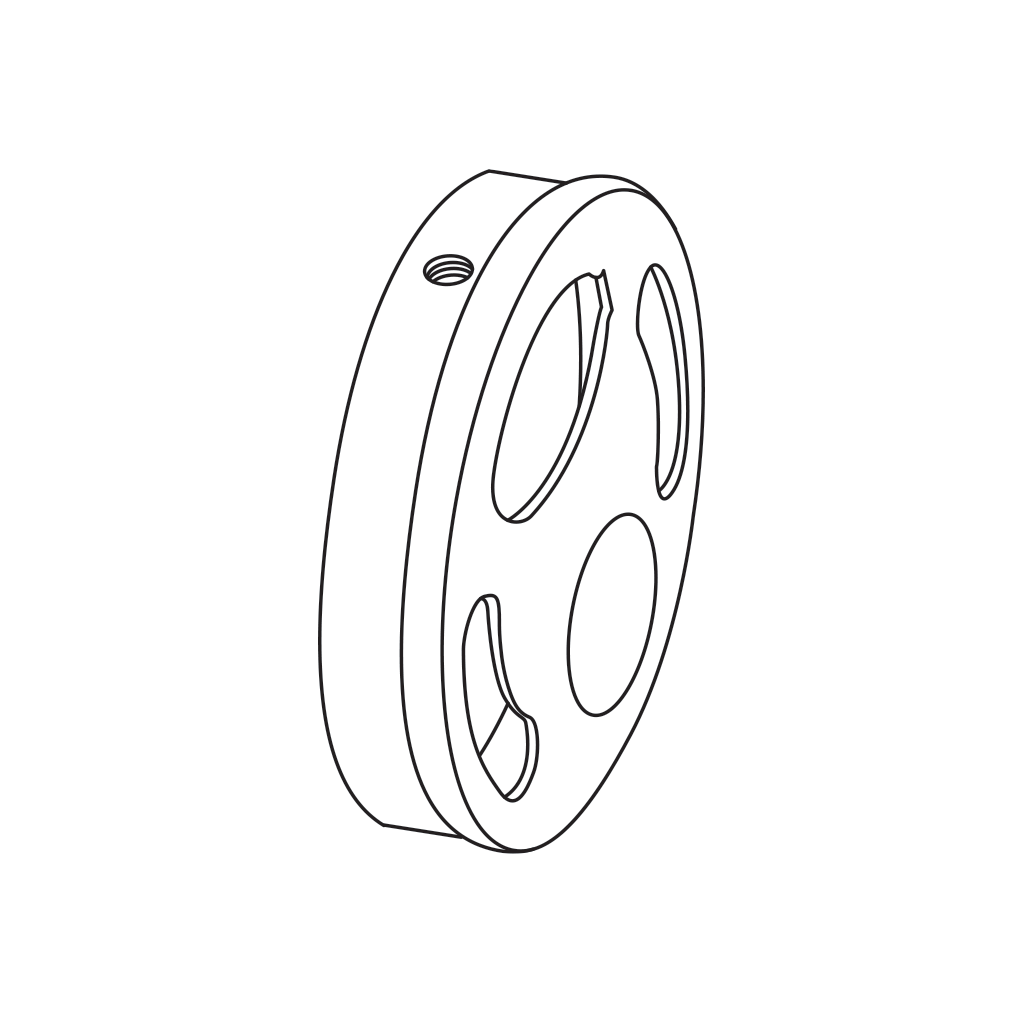

41 - Rear Cap

Part number:H60-017B

£7.00

Details ...

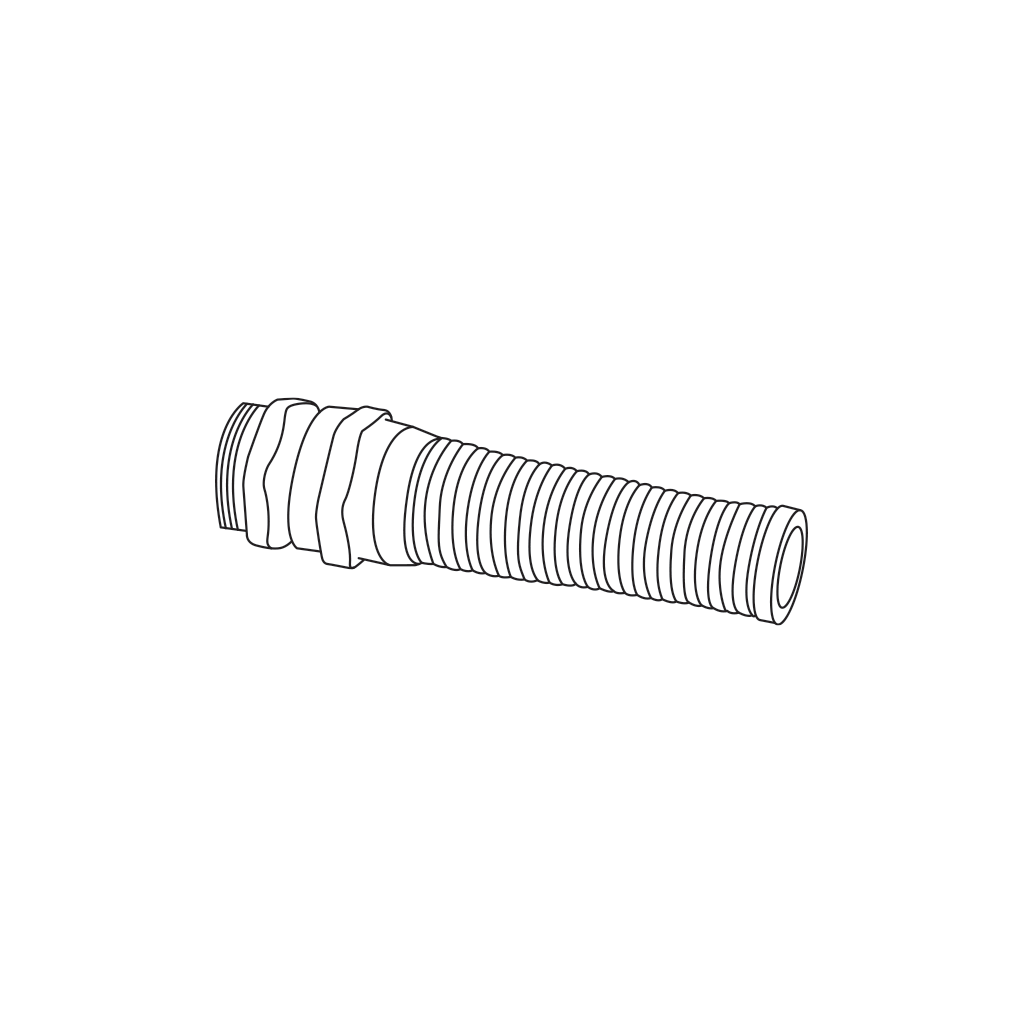

42 - Gland (Spring Type)

Part number:H60-024

£9.00

Details ...

43 - Switch

Complete product combined of parts 43 and 44.

Part Numbers: Red Terminal - H60-021A, Blue Terminal - H60-021B

£7.50

Details ...

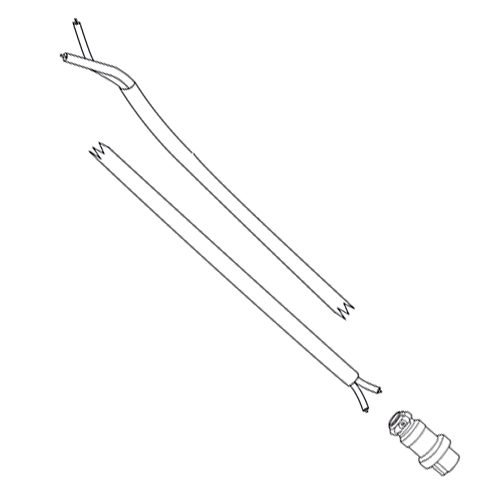

45 - Straight Flex CB Plug

Part number:H60-041

£18.00

Details ...

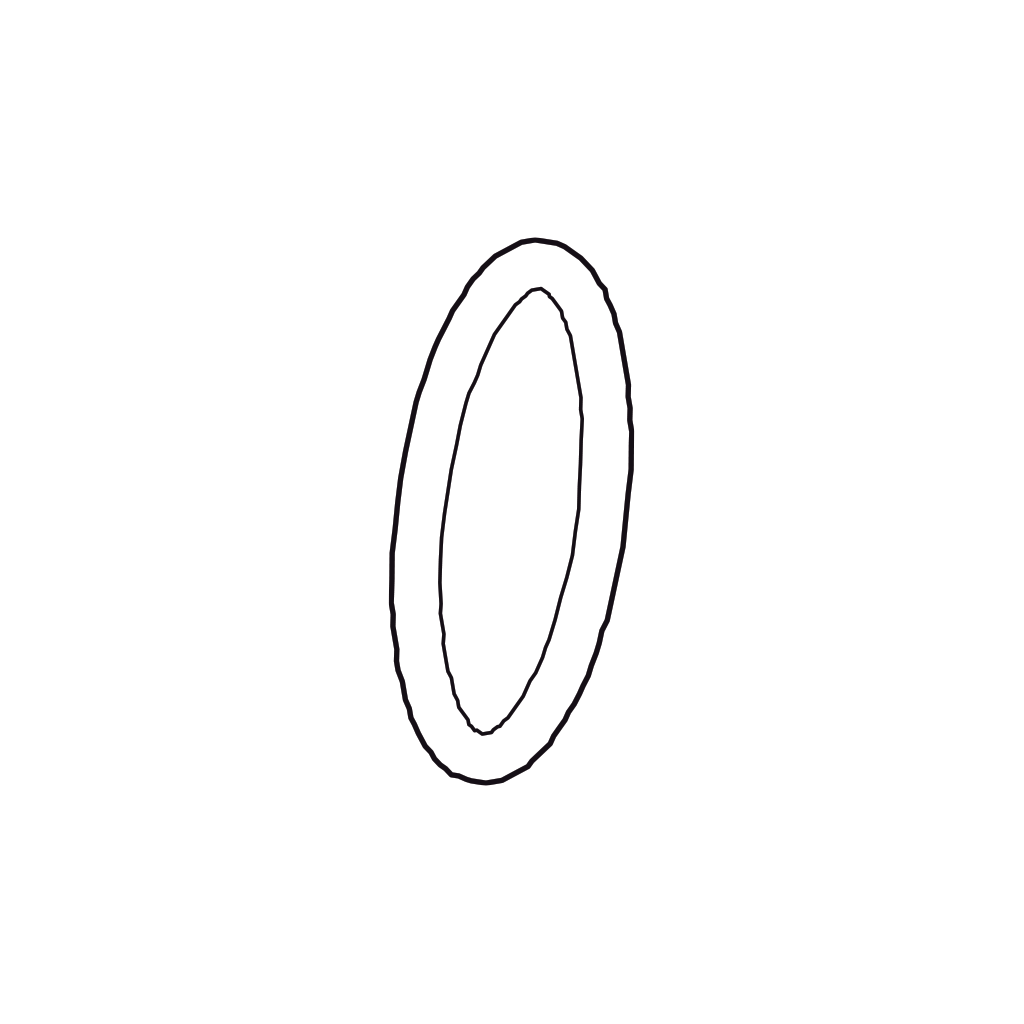

47 - O-Ring (Inner)

Part number:H60-028

£0.22

Details ...

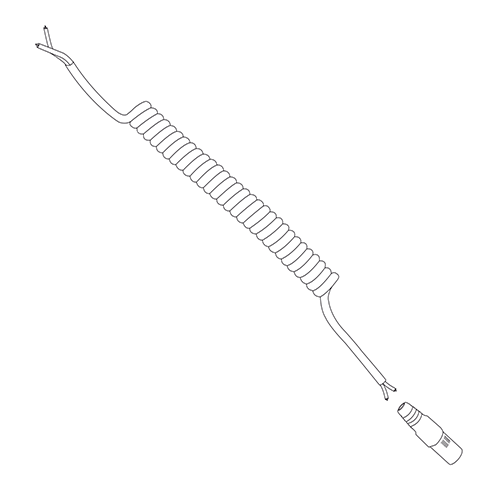

Coiled Flex XLR Plug

Part number:H60-042

£18.00

Details ...

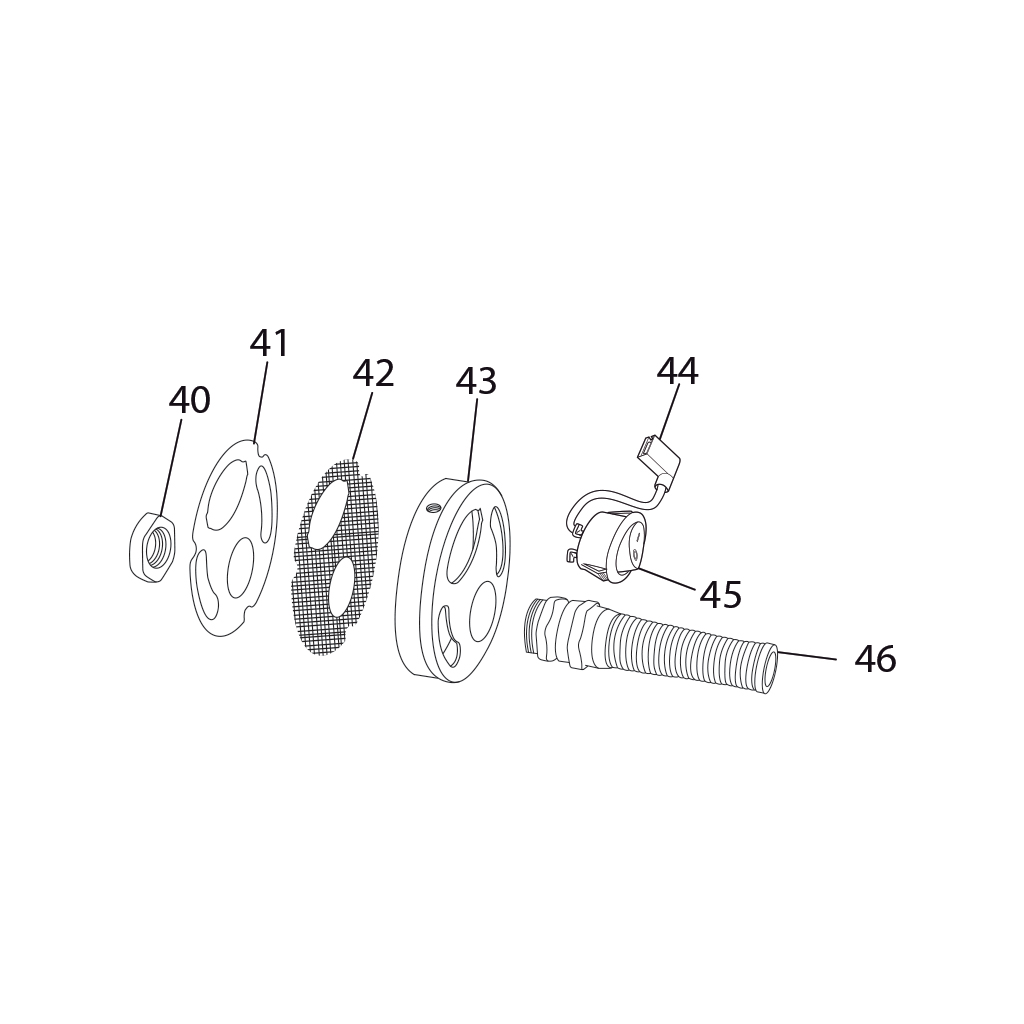

Complete Rear Cap for the Rambo

£26.00

Details ...
